High-Amp Circuit Breakers 101

Electrical systems in vehicles, boats, and mobile equipment keep getting more capable—and more demanding. High-output alternators, lithium batteries, and power-hungry accessories now push hundreds of amps through onboard wiring. That much current delivers performance, but it also increases risk.

High-amp circuit breakers sit at the heart of safe, reliable DC power management. They prevent overloads, stop short-circuit damage, and make troubleshooting faster. Here’s what they do, how they’ve evolved, and how key manufacturers—Eaton, Mechanical Products, Egis Mobile Electric, and OptiFuse—help keep heavy-duty power under control.

What “High-Amp” Really Means

Typical automotive breakers protect small circuits under 30A. High-amp models are built for 100A – 300A and beyond, guarding large loads such as winches, inverters, windlasses, or auxiliary HVAC systems.

Unlike a fuse that must be replaced, a breaker can be reset after tripping—saving time and reducing downtime. A visible reset arm or button also helps technicians quickly pinpoint which circuit faulted.

Why Protection Is Critical

A short circuit in a 12- or 24-volt system can unleash enough amps to melt cable insulation and damage batteries. Circuit breakers limit that energy before it becomes dangerous, isolating faults without disabling the entire DC bus. High amp circuit breakers provide service efficiency by means of their manual reset, enabling instant recovery after fixing the issue. They also help meet safety standards such as SAE J553 for vehicles and ABYC-11 for marine installations.

How To Select the Right High-Amp Circuit Breaker

Choosing a breaker starts with picking an amperage label, but there’s more. Consider where and how the breaker will be used. Vehicle applications, for example, demand compact, vibration-resistant breakers that tolerate high engine-bay temperatures. Marine systems prioritize corrosion resistance, waterproof sealing, and ignition protection near fuel sources.

Both share one rule: mount the breaker as close to the power source as possible to minimize unprotected cable length. Other things to keep in mind:

• Match the load, protect the wire: Choose breaker amperage to protect the conductor first; verify continuous load and duty cycle.
• Voltage & interrupt rating: Ensure DC voltage rating (12/24/48V as applicable) and interrupt capacity exceed your system’s worst-case fault current.
• Trip curve and nuisance trips: Consider inrush (motors, pumps, winches) and pick a breaker curve that tolerates start-up but trips on sustained overloads.
• Environmental rating and durability: Choose sealing, vibration, and ignition-protection appropriate to the location. Look for sealed/ignition-protected units where moisture, salt, dust, fuel vapor, or mud are present; and corrosion-resistant hardware such as stainless or nickel-plated studs.
• Mounting style: Surface-mount for battery protection, panel-mount for operator access. Place the breaker near the source (battery/alt feed) to minimize unprotected cable length; ensure clear access for reset and inspection.
• Reset style: Manual reset breakers are considered field-friendly, auto-reset breakers reclose after cooling, and switchable breakers combine circuit protection with an integrated on/off switching function, allowing manual control of the circuit without needing a separate switch.

Coordinating upstream and downstream devices ensures selective tripping, so only the affected circuit opens during a fault.

A Look at Industry Leaders

Eaton

Through its Bussmann division, Eaton offers an extensive portfolio of high-amp circuit breakers, including:

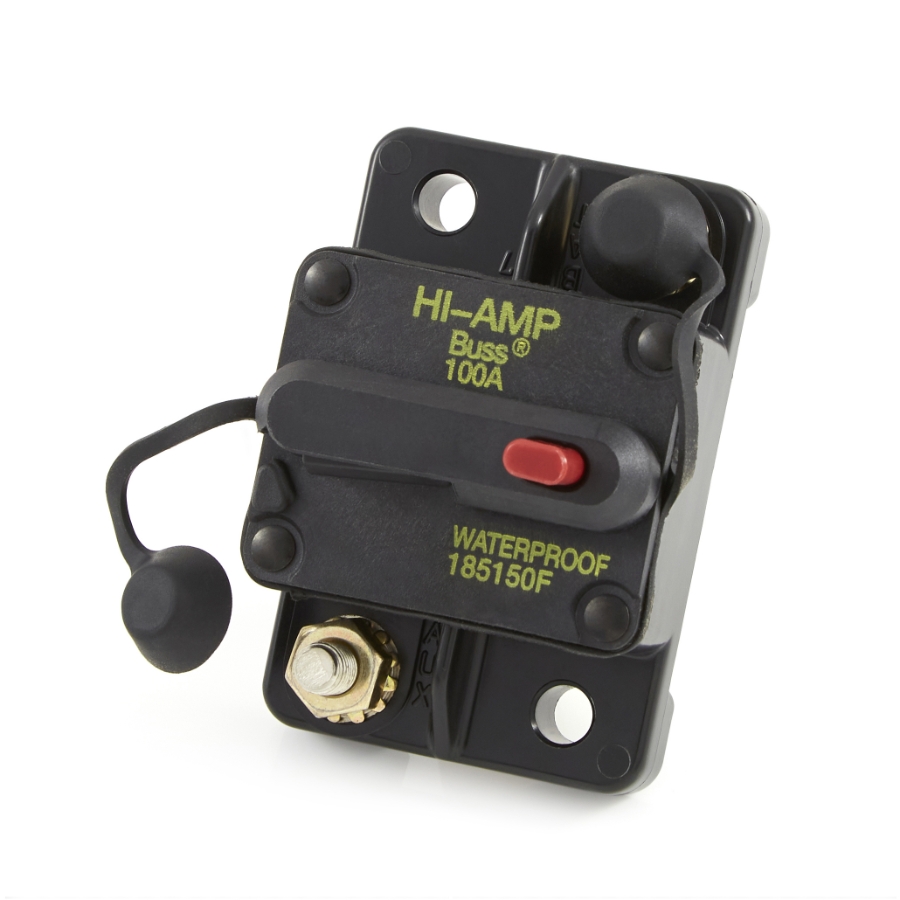

• Series 181, 184, and 185 Hi-Amp circuit breakers, which are ideal for auxiliary and accessory circuits in automotive, recreational, and marine applications. They are available at Waytek in auto reset, manual reset, and manual (switchable) reset styles ranging from 25 to 150 amps.
• Series 285 Hi-Amp circuit breakers, designed for high-current protection in demanding automotive and heavy-duty vehicle applications. With ratings from 50 to 150 amps, they ensure safe power in circuits requiring high power.
• Series 187 Marine Rated circuit breakers. These are typically used in DC power systems in marine applications (as a main or branch circuit breaker), but also in truck and bus systems, RV systems, and as add-on protection for accessories, lift gates, and more. They are external ignition protected and weatherproof. Models at Waytek range from 30 to 200 amps.

Mechanical Products

Mechanical Products produces top-notch thermal circuit protection devices for use in the automotive and marine markets. Their high-amp offerings include:

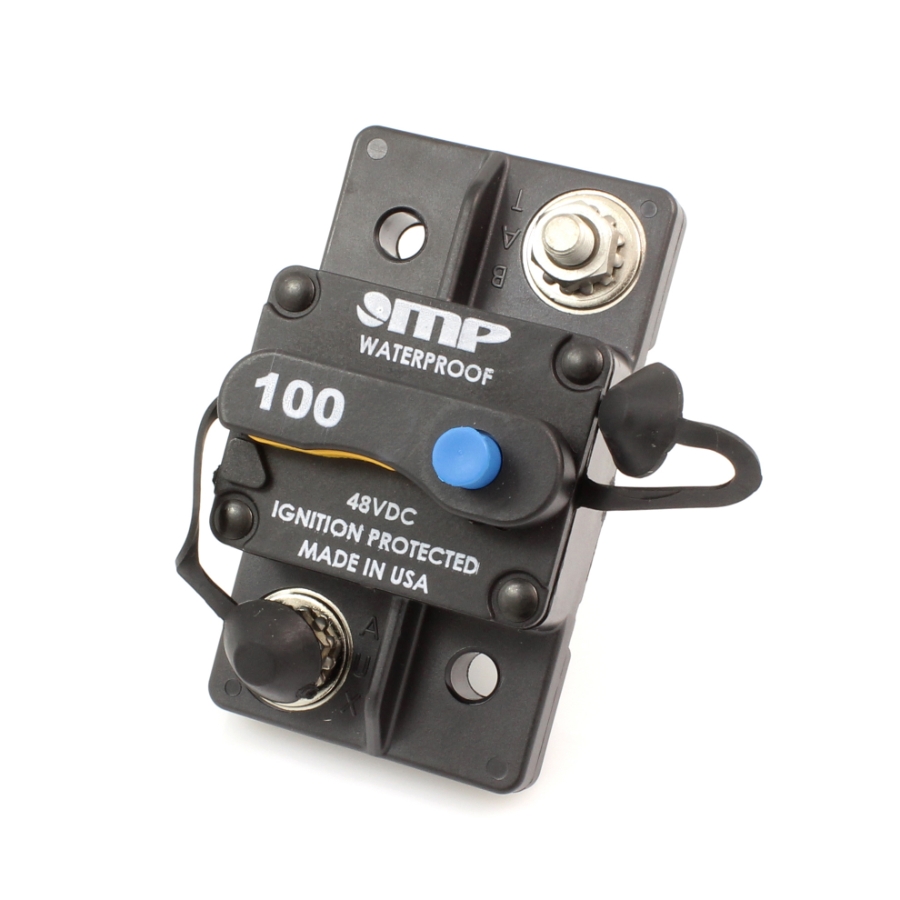

• Series 17 High Amp circuit breakers in all types and mounting options, including type II push/trip models with a reset guard to prevent accidental tripping, and a modified compact surface mount series that meets the increasing demands of small spaces in vehicle compartments. Available up to 300 amps.
• Series 87 Marine Rated high amp circuit breakers in type III switchable configuration, engineered for durability and performance in demanding applications, available from 25 to 250 amps.

Egis Mobile Electric

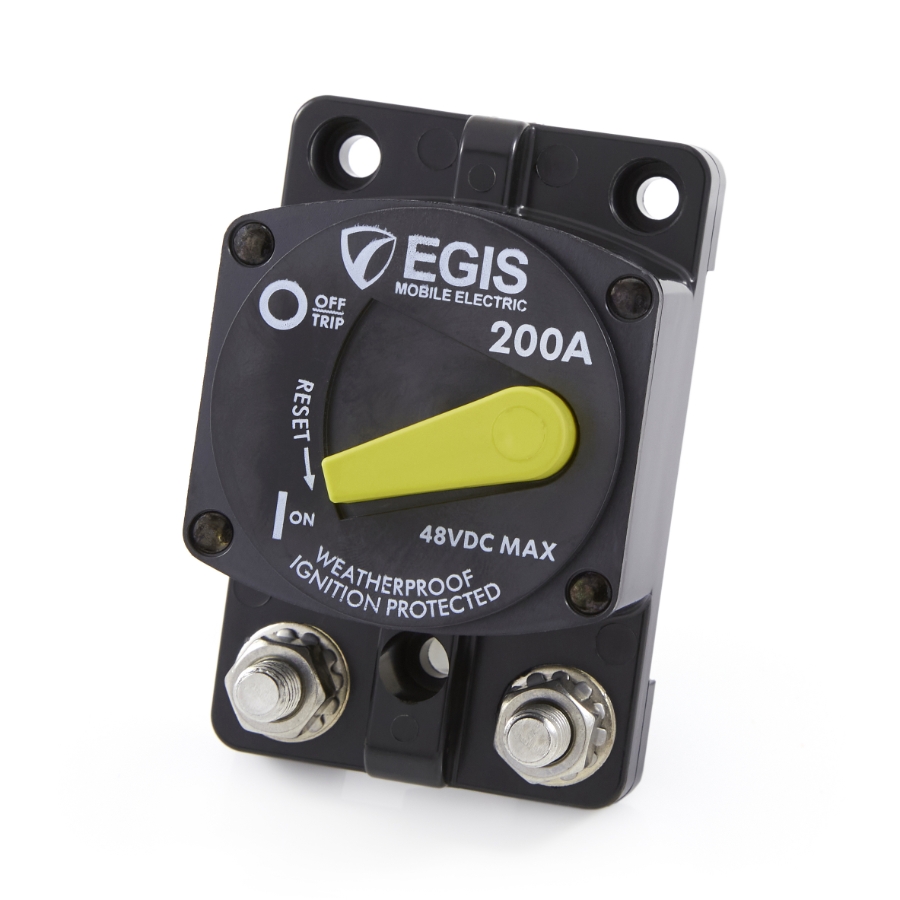

Egis Mobile Electric manufactures the Series 47 ignition-proof circuit breaker line. These 200- and 250-amp breakers are made for demanding uses including police and emergency vehicle applications. They  offer robust construction, weatherproof housing, easy-to-mount surface mount or panel mount designs, stainless steel hardware, and a high visibility ON/OFF lever.

Egis has a complete line of circuit protection and system integration products including power distribution modules and relays; all made in the USA.

OptiFuse

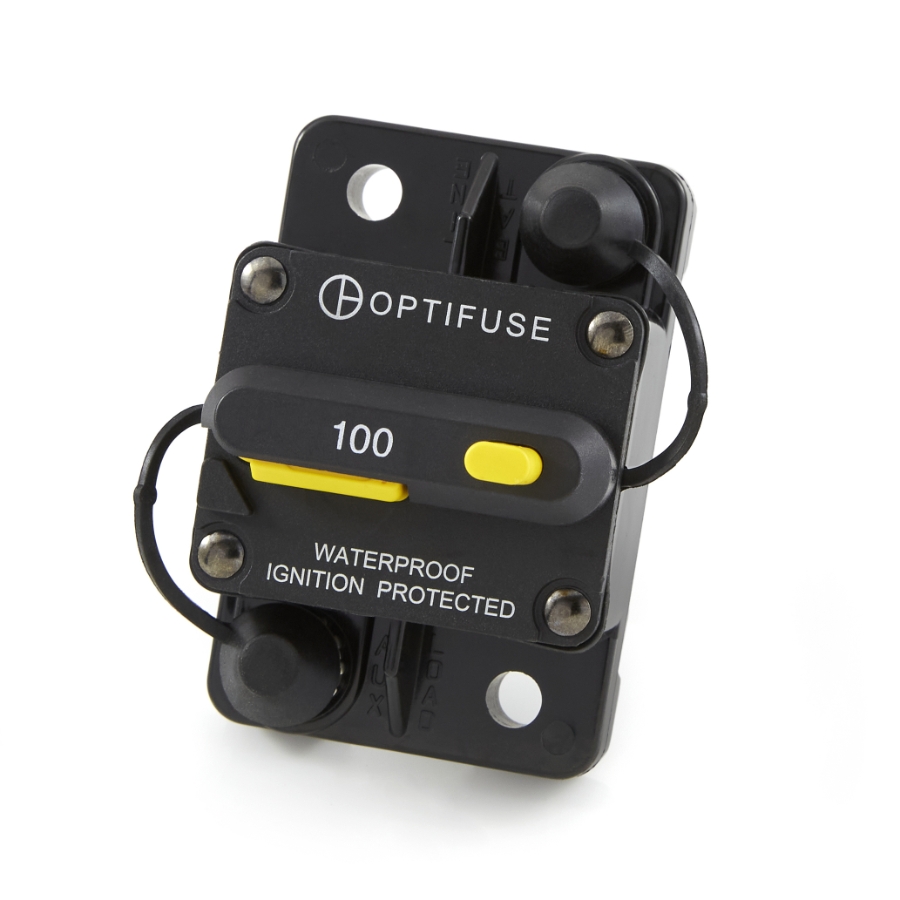

OptiFuse offers high-amp circuit breakers in type I auto reset and type III manual reset styles. These circuit breakers are IP67 rated, ABYC E-11 compliant and feature heavy-duty construction to protect accessory and auxiliary high amp-draw applications in marine craft, RVs, emergency vehicles, and heavy-duty trucks. They are available in models ranging from 30 to 200 amps.

Where the Technology Is Headed

The future of high-amp breakers is smart and connected. Expect advances such as remote reset and monitoring via CAN, programmable trip profiles for different loads, and compatibility with 48-V hybrid and EV architectures.

The Bottom Line

High-amp circuit breakers are the quiet guardians of modern power systems. They protect conductors, equipment, and lives from the dangers of excessive current. Whether you’re designing a commercial truck, outfitting a yacht, or upgrading an off-grid rig, choosing a properly rated, well-built breaker ensures that power stays both available and safe.

See Waytek’s Guide to High-Amp Circuit Breakers and explore our wide range of circuit breakers, in stock and ready to ship, at waytekwire.com.
