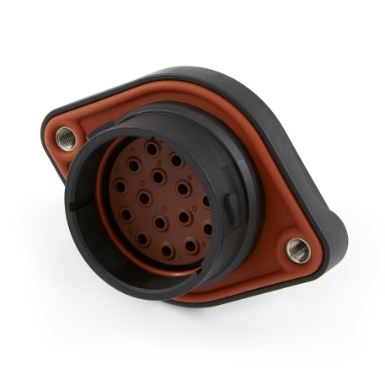

Amphenol DuraMate™ AHDP Connectors
"Amphenol Sine Systems’ DuraMate™ AHDP connectors are an environmentally-sealed, multi-pin, heavy duty, plastic, circular connector with IP68 and IP69K ratings (in mated condition) that contains an economical, quick-connect, bayonet locking system manufactured to withstand the challenges and complexities of harsh environment off-road applications. Available in the following options: DuraMate™ AHDP with PanelMate™ and DuraMate™ AHDP ISOBUS 91 Series.
Features
• 3 keyway bayonet design ensures proper mating of connectors
• High density signal and mixed power insert configurations
• High current configurations incorporating revolutionary RADSOK® contacts
• Low insertion force stamped terminals offer improved manufacturing efficiencies
• Sealing features consisting of durable high temperature silicone provide barrier from lubricating oils, hydraulic fluids and fossil fuels
• Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain-relief for jacketed cable ranges.
• Wire entry sealing available in four separate ranges for discrete wire applications
• Environmentally-sealed and engineered rapid and secure mating system achieves up to IP69K rating (in mated condition) from ingress of dust, water, mud and other contaminants and is vibration resistant
• Smooth Ring Adapters (SRA) are designed for use without backshells for a smaller footprint
• Small Thread Adapters (STA) provide an enhanced “step down” threading for use with screw-on or clamshell backshells
• Wide Thread Adapters (WTA) provide an enhanced threading for use with our wide variety of screw-on or clamshell backshells
• Backshell Ring Adapters (BRA) allow for use with other compatible industry-standard snap-on backshells
• Utilizes A Series™ standard contact system (Stamped & Formed or Machined)
Applications: Heavy Equipment, Agriculture, Construction, Transportation, Off-Road, Mining, Industrial, Railway, Automotive, Diagnostics, Marine, Water Resistance, Harsh Environments"
