Outstanding electrical performance and compact size best describe the Lear MAK Power Series. Lear Power MAK Terminals accept 8.0/9.5 mm and 12.0 mm blades and wire termination by either crimping or ultrasonic welding make this system the first choice for any high-current application.

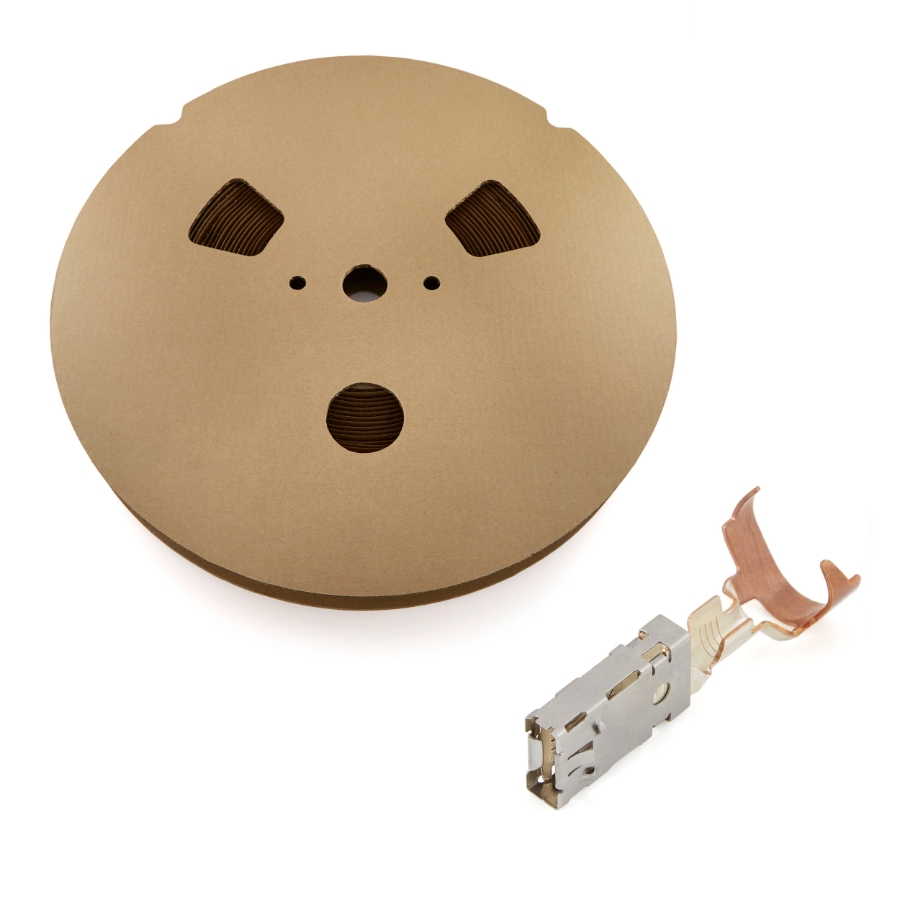

- Lear 28224306710 MAK 8 Series Silver Plated Female Terminal Reel
- Category: Fuse Holders
- Manufacturer: Lear Corporation
- Blade System Designed for low mating effort
- Compact, Low-profile design
- High current carrying capabilities
- Secondary locking is possible from all sides
- Contact area additionally supported by spring
- High ampacity due to spring support
- MAK 8 rated up to 100A at 176°F (80°C) ambient temperature
- Robust product by stainless steel box design
- Multiple lamella design for electrical performance and vibration resistance
- Can be used with GEP FRH Series Fuse Holders #38547
- 600 terminals on a reel
Manufacturer : LEAR Corporation
Termination: 14-12 Gauge
Current Rating: 100A
