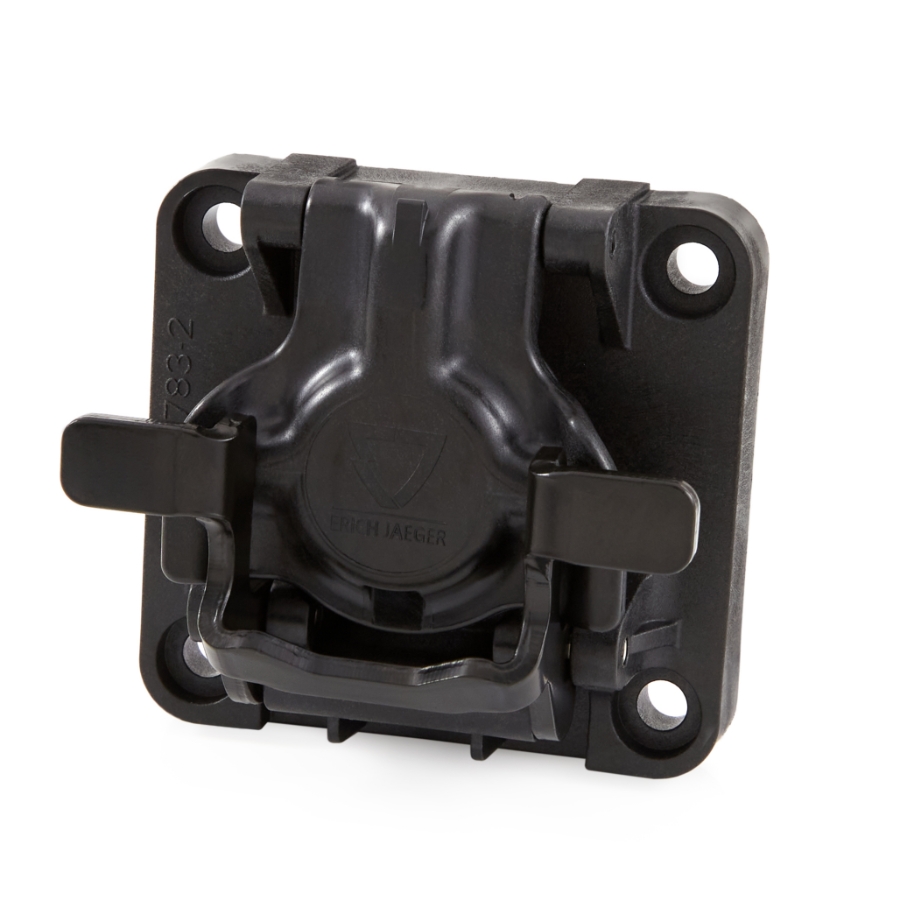

Erich Jaeger 153109, 9-Way ISOBus Trailer Pass-Through Socket (ISO11783-2)

The Erich Jaeger 153109 pass‑through socket supports daisy‑chain ISOBUS wiring configurations in agricultural implements. Built to ISO 11783‑2 standards, it features a 9‑pole layout with nickel-plated contact sleeves inside a purple insert, and a reinforced composite housing. Rated to IPX9K for cleaning resilience, it ensures robust network continuity without internal termination—ideal when paired with an Active or Monitoring socket. Rugged, reliable, and ready for precision farming systems.

• Erich Jaeger 153109, 9-Way ISOBUS Trailer Pass-Through Socket (ISO11783-2)
• Category: Trailer Connectors
• Manufacturer: Erich Jaeger
• Number of Contacts: 9
• Ensures ISOBUS network continuity with linear pass‑through configuration, eliminating the need for jumpers or adapters.
• Passive design means no internal termination resistor—power and termination must come from an Active or Current‑Monitoring socket elsewhere on the bus.
• Robust nickel-plated contacts and composite housing built to withstand rugged field use and frequent connector cycles
• Ideal for agricultural & utility vehicle applications
• Features:
  • Passive 9‑pole pass‑through socket per ISO 11783‑2
  • Purple contact insert, nickel-plated sleeves
  • Extreme ingress protection (IPX9K, IP6X, IPX4K, IP54)
  • Daisy‑chain friendly design without internal termination
  • Reinforced composite construction
  • Operational at 12 V nominal
• Applications:
  • Connecting multiple ISOBUS sockets in series for implement and vehicle networks
  • Ideal where only pass‑through continuity is needed (e.g., middle line socket)
  • Suitable for high-pressure washdown environments
• Included in box:
  • ISOBUS Pass‑Through socket assembly and plastic lid/cover
