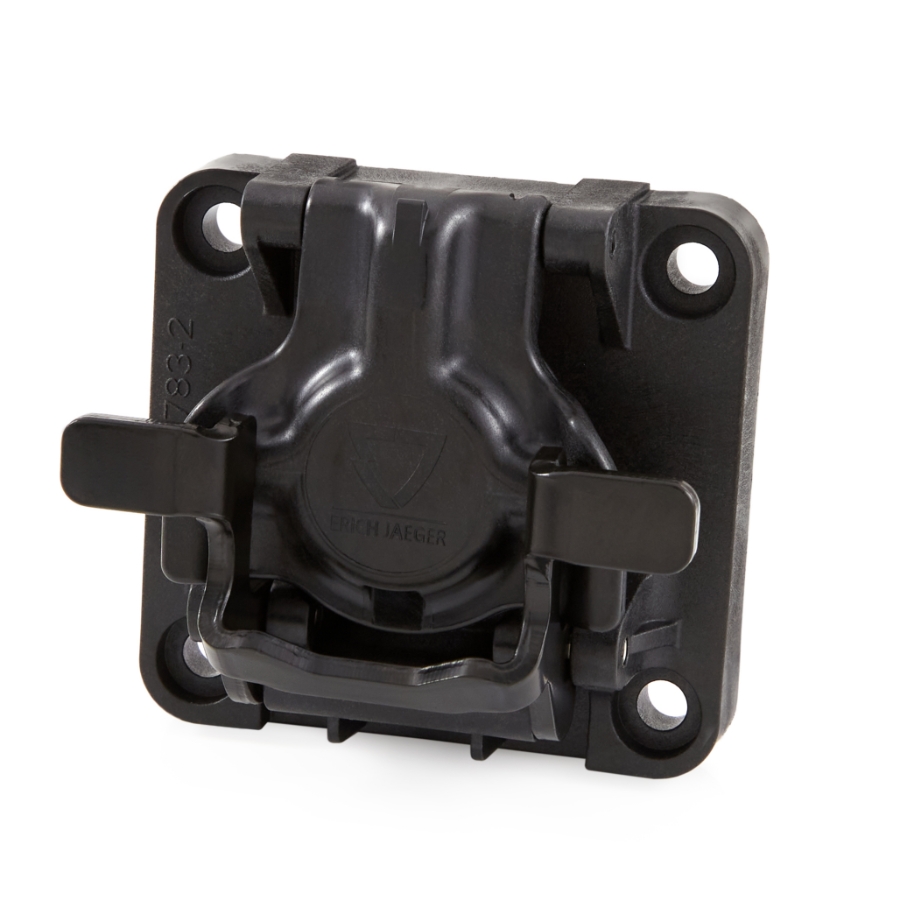

Erich Jaeger 153110, 9-Way ISOBUS Trailer Connector Socket (ISO 11783-2)

The Erich Jaeger 153110 passive socket delivers reliable ISOBUS connectivity for agricultural implements. Designed to ISO 11783‑2 TPPL specs, it integrates a 120 Ω termination resistor in a rugged breakaway housing. Rated to IP 69K and IP X4K, it withstands demanding field conditions and washdown. Complete with nickel‑plated contact sleeves and a blue insert for easy identification—it’s built for long service life in precision farming operations.

• Erich Jaeger 153110, 9-Way ISOBUS Trailer Connector Socket (ISO 11783-2)
• Category: Trailer Connectors
• Manufacturer: Erich Jaeger
• Number of Contacts: 9
• Screw‐terminal design offers clean, sturdy wiring connections with easy maintenance.
• Supplied with gasket and cover, ready for immediate installation.
• Ideal for agricultural & utility vehicle applications
• Features:
  • Passive (slave) ISOBUS socket type “IBBC 120” with TPPL network
  • 9-pin contact layout, blue insert, nickel-plated sleeves
  • 120 Ω termination resistor built-in
  • Passive solution without ECU_PWR—only one needed per implement
  • IP 69K / IPX4K washdown protection rating
• Applications:
  • Precision-agricultural implement interface (sprayers, seeders, etc.)
  • Passive termination in a multi-socket ISOBUS CAN‑bus network
  • Replacement or OEM-quality retrofit socket for ISOBUS equipment
  • Passive solution without ECU_PWR—only one needed per implement
• Included in box:
  • 9‑pole ISOBUS socket with integrated termination resistor and protective end cap
