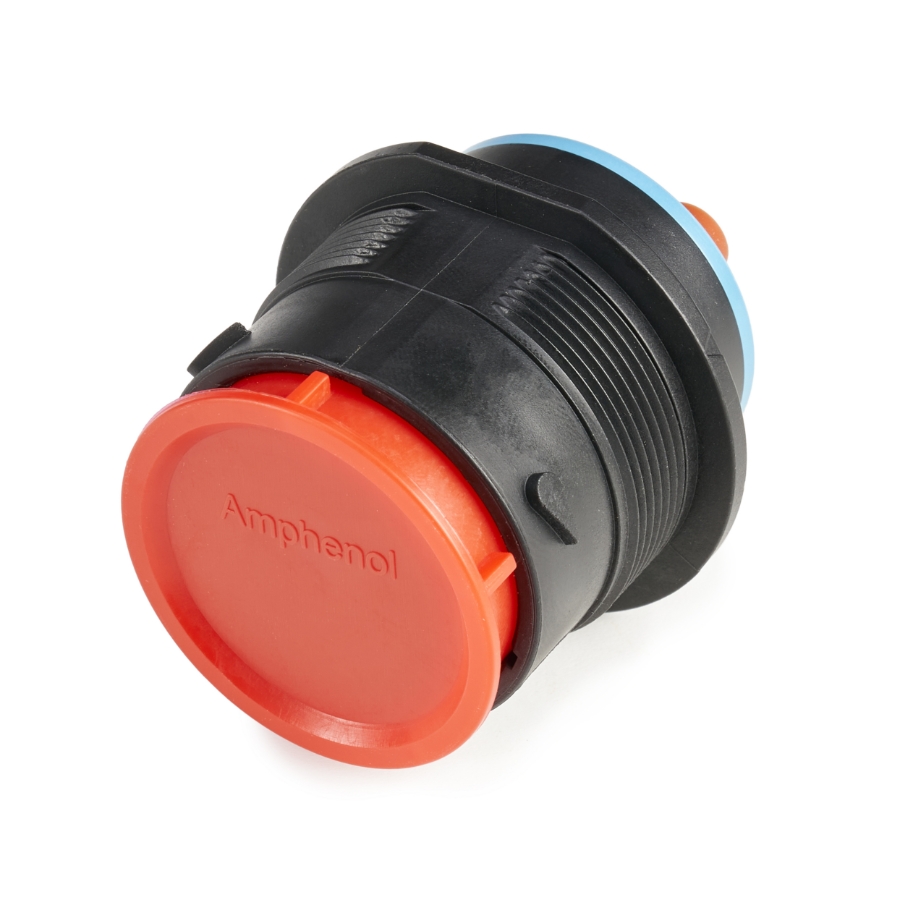

Amphenol Sine Systems AHDP04-24-09PR-SRA DuraMate AHDP Series, 9-Way Receptacle, Pin, Shell Size 24
Waytek #:39185
Mfr. #:AHDP04-24-09PR-SRA
$10.9000 / EA
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $10.9000 | $10.90 |
| 10 | $10.0000 | $100.00 |
| 50 | $9.1000 | $455.00 |
| 100 | $8.4800 | $848.00 |
| 200 | $7.8500 | $1,570.00 |
| 500 | $7.4600 | $3,730.00 |
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $10.9000 | $10.90 |
| 10 | $10.0000 | $100.00 |
Min. Order Qty: 1 |
Availability: 0 in Stock |
Standard Lead Time When No Stock: 140 days |
The DuraMate AHDP environmentally-sealed, multi-pin, heavy duty, plastic, circular connector series provides an economical quick-connect bayonet locking system manufactured to withstand the challenges and complexities of harsh environment off-road applications.
- Amphenol Sine Systems AHDP04-24-09PR-SRA DuraMate AHDP Series
- Category: Amphenol AHDP Connectors
- Manufacturer: Amphenol Sine Systems
- Component Type: Receptacle Housing
- Wire Gauge: 14-6 Ga.
- Number of Circuits: 9
- Series: AHDP
- Number of Pins: 9
- Environmentally sealed rapid and secured mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud, and other contaminants and is vibration resistant
- Amphenol AHDP Series circular connectors contain an economical quick-connect bayonet locking system to help ensure proper mating
- Manufactured to withstand the challenges and complexities of harsh environments
- Provides a high density of signal and mixed power in a compact connector system
- Utilizes A Series standard contact system (stamped & formed or machined)
- Accepts (6) Size 12 Contacts, (2) Size 8 Contacts, (1) Size 4 Contact
- Operating Temperature Range: -67°F to (-55°C) to 257°F (125°C)
- Current Rating: 25A, 60A and 100A
- Shell Size: Size 24
- Mating Connector: AHDP06-24-09S* | Waytek # 39184 (*Rear seal type and other mating connection modifications are available; see product data sheet for more information)
- Modifications: Sealed panel mount, smooth ring adapter
- Ratchet Hand Crimp Tool: 40103
- Contact Removal Tool: 631
Manufacturer : Amphenol Sine Systems
Country of Origin: Mexico
Number of Circuits: 9 Circuit
Component Type: Receptacle Housing
Wire Gauge: 14-6 Gauge
