Amphenol Sine Systems AT6PS-CKIT 6-Pin Receptacle & Plug AT Connector Kit

AT Series connectors are a high-performance, cost-effective solution for use in a variety of interconnect applications: heavy-duty, transportation, marine, diagnostic, military, alternative energy, and agricultural. They contain superior environmental seals and seal retention capabilities.

• Amphenol Sine Systems AT6PS-CKIT 6-Pin Receptacle & Plug AT Connector Kit
• Category: Amphenol AT Series™ Connectors
• Manufacturer: Amphenol Sine Systems
• Component Type: Receptacle & Plug Housing
• Number of Pins: 6
• Deutsch DT compatible connector line
• High-performance, cost-effective Deutsch DT replacement
• Durable thermoplastic housings offer excellent UV resistance, dielectric/mechanical properties and RoHs compliance
• Sealing system is comprised of a front and rear silicone multi-sealing perimeter against environmental ingress
• Nickel-plated contacts ensure an electrically reliable connection
• Integral latching system ensures definitive electrical and mechanical connection
• Pin terminals and socket terminals can be interchangeable with Deutsch DT terminals
• Amphenol receptacles must be used with the Amphenol wedgelocks in order to mate properly with Deutsch DT connectors

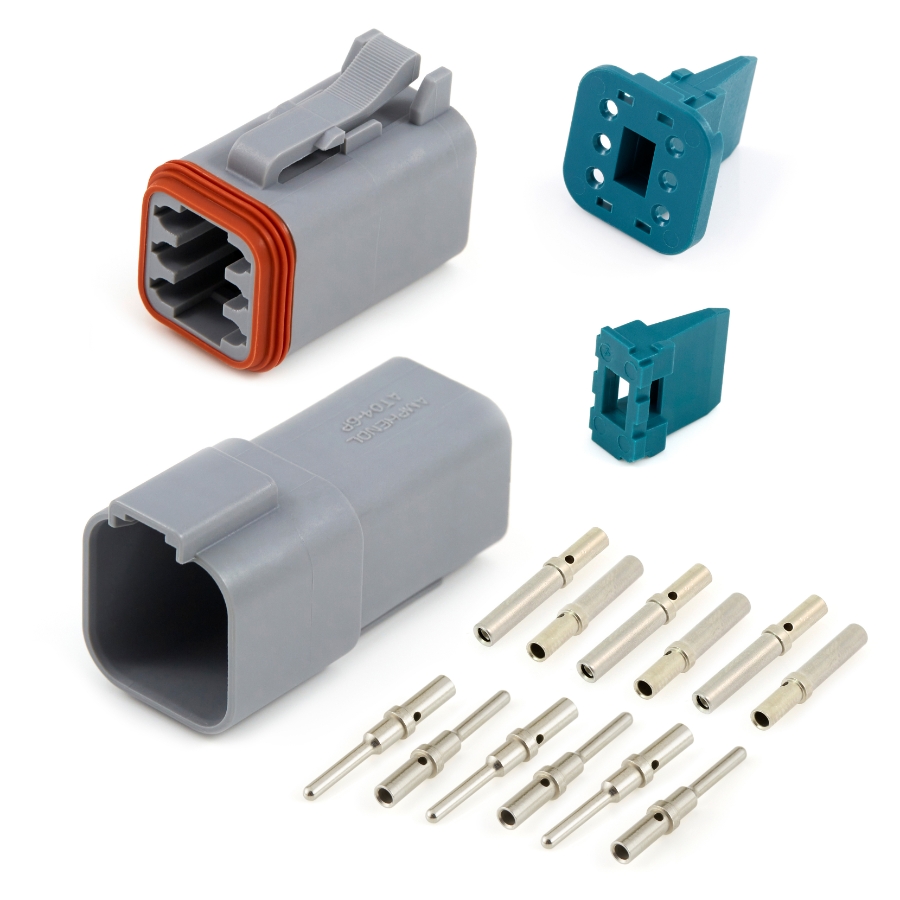

• Amphenol Kit Includes:
  • Qty. 6 | AT60-202-16141, Male Terminals, Size 16
  • Qty. 1 | AW6P, AT 6-Pin Receptacle Wedge
  • Qty. 1 | AT04-6P, AT 6-Pin Receptacle Connector
  • Qty. 6 | AT62-201-16141, Female Terminals, Size 16
  • Qty. 1 | AW6S, AT 6-Pin Plug Wedge
  • Qty. 1 | AT06-6S, AT 6-Pin Plug Connector
• Wire Gauge Range: 20-16 Ga.
• Current Rating: 13A
• Operating Temperature: -67°F (-55°C) to 257°F (125°C)
