Amphenol Sine Systems ATM4PS-CKIT 4-Pin Receptacle & Plug ATM Connector Kit

Amphenol Sine Systems ATM Series™ connectors are a high-performance, cost effective solution specifically designed for smaller gauge applications, while still maintaining the strengths of the AT Series product line. All of our ATM Series connectors have been developed to be completely compatible with all other existing standard products industry-wide.

• Amphenol Sine Systems ATM4PS-CKIT 4-Pin Receptacle & Plug ATM Connector Kit
• Category: Amphenol ATM Series™ Connectors
• Manufacturer: Amphenol Sine Systems
• Number of Pins: 4
• Deutsch DTM compatible connector line
• High-performance, cost-effective Deutsch DTM replacement
• Durable thermoplastic housings offer excellent UV resistance, dielectric/mechanical properties and RoHs compliance
• Sealing system is comprised of a front and rear silicone multi-sealing perimeter against environmental ingress
• Nickel-plated contacts ensure an electrically reliable connection
• Integral latching system ensures definitive electrical and mechanical connection
• Pin terminals and socket terminals can be interchangeable with Deutsch DT terminals
• Amphenol receptacles must be used with the Amphenol wedgelocks in order to mate properly with Deutsch DT connectors

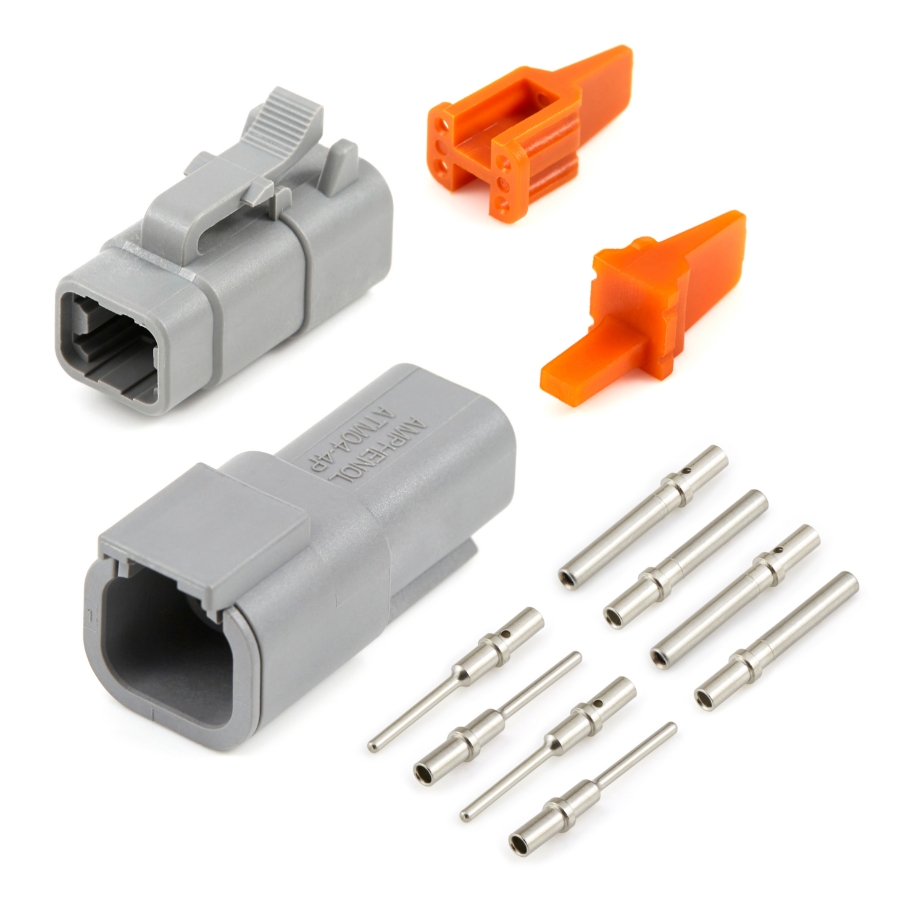

• Amphenol Kit Includes:
  • Qty. 2 | AT60-202-20141, Pin Terminal, Size 20, 22-20 Ga.
  • Qty. 1 | AWM-4P, ATM 4-Pin Plug Wedge
  • Qty. 1 | ATM04-4P, ATM 4-Pin Receptacle Connector
  • Qty. 2 | AT62-201-20141, Socket Terminal, Size 20, 22-20 Ga.
  • Qty. 1 | AWM-4S, ATM 4-Pin Receptacle Wedge
  • Qty. 1 | ATM06-4S, ATM 4-Pin Plug Connector
• Current Rating: 7.5A
• Operating Temperature: -67°F (-55°C) to 257°F (125°C)
