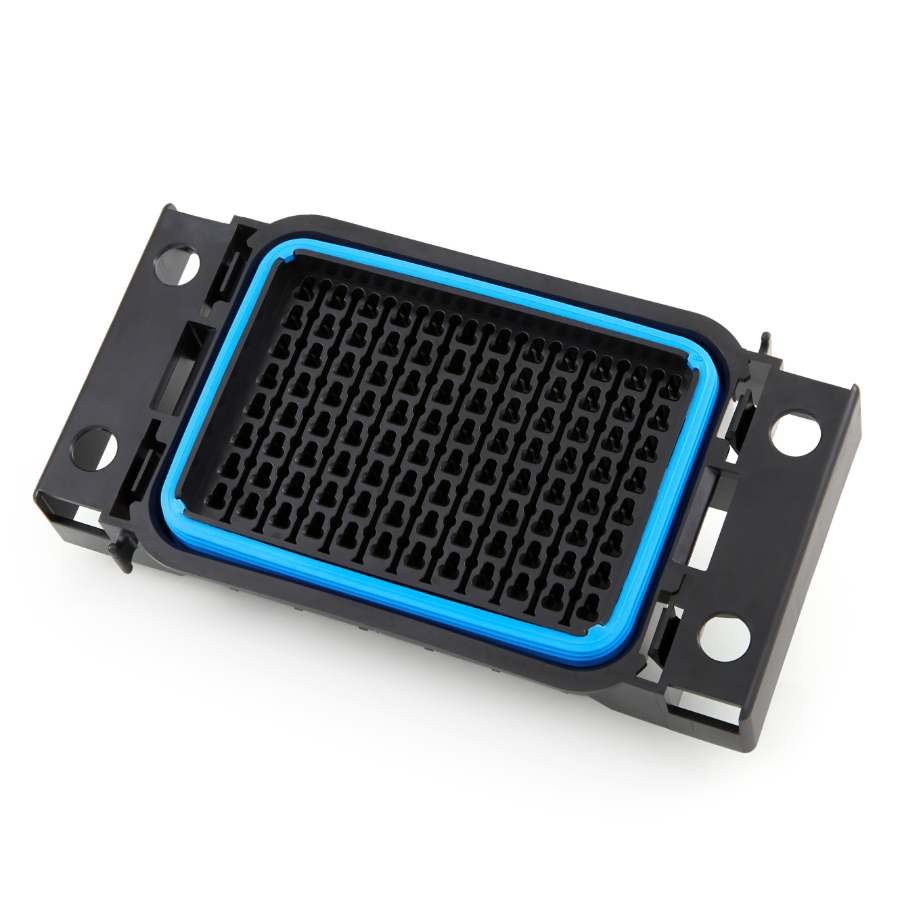

GEP Power Products SC42-2008A-B001, PDM-U Series, Power Distribution Module 96 Position
Waytek #:30483
Mfr. #:SC42-2008A-B001
$23.7200 / EA
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $23.7200 | $23.72 |
| 10 | $21.2000 | $212.00 |
| 50 | $19.2500 | $962.50 |
| 100 | $18.6000 | $1,860.00 |
| 200 | $17.9400 | $3,588.00 |
| 500 | $17.2900 | $8,645.00 |
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $23.7200 | $23.72 |
| 10 | $21.2000 | $212.00 |
more infoMin. Order Qty: 1 |
Availability: 0 in Stock |
Standard Lead Time When No Stock: 125 days |
Documents
Increased power distribution requirements in today's vehicles create the need for additional component capacity to support electrical system integrity. To meet these increasing power challenges, GEP has expanded its PDM product series to include a 96 terminal position product. This new sealed, compact, and rugged addition to our PDM line also offers more configuration options to transportation and off road OEMs.
- GEP Power Products SC42-2008A-B001, PDM-U Series, Power Distribution Module 96 Position
- Category: Power Distribution Modules
- Manufacturer: GEP Power Products
- 96 Terminal Position Capacity
- Accepts Aptiv Metri-Pack 280 Terminals
- Designed for higher power applications
- Comes with retainer clips in the mounting holes
- Cover not included
- Optional mounting clips 30411 available
- Options TPA (Terminal Position Assurance) 30410 available
- Optional cavity plug 39015 available
- Optional diode key 30409 available
- PDM's interlock to allow for component add-ons and system growth
- Designed to withstand hard environments
- Accepts a combination of 2.8mm components - MINI, Circuit Breakers, and Diodes
Manufacturer : GEP Power Products
Country of Origin: China
Temp (Degrees): -40°F (-40°C) to 257°F (125°C) Temp
Nominal Voltage: 58VDC
Component Type: Top Mount
Number of Circuits: 96 Circuit
Termination: 2.8mm
