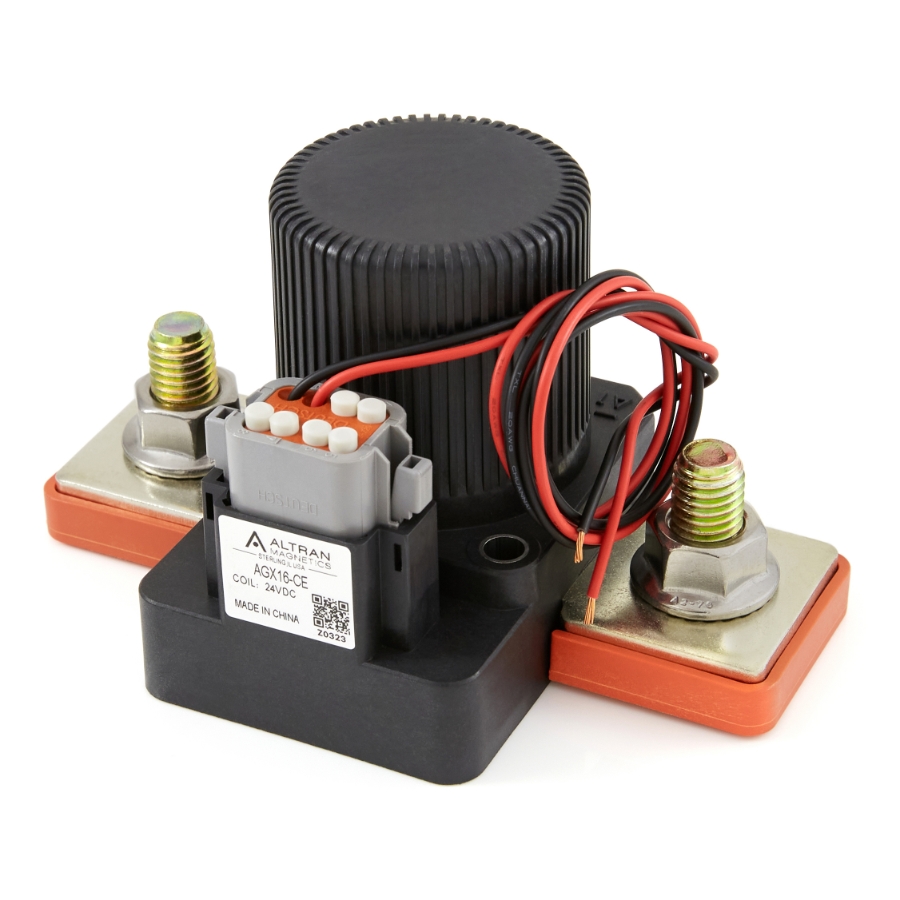

Altran Magnetics AGX16CE 24V 600A DC Contactor With Auxiliary Contacts
Waytek #:77166
Mfr. #:AGX16CE
$ / EA
Min. Order Qty: 1 |
Availability: 0 in Stock |
Standard Lead Time When No Stock: 60 days |
Documents
The Altran AGX16 Series features a hermetically sealed inert gas filled arc chamber, creating a stable sealed environment suitable for high voltage switching. Safe for explosive environments. Mountable in any orientation without impacting performance. Wide range compatibility with an operating voltage range of 12 to 900VDC.
- Altran Magnetics AGX16CE 24V 600A DC Contactor with Auxiliary Contacts
- Category: Contactors
- Manufacturer: Altran
- Nominal Voltage:12VDC
- Contact Studs: M12 x 1.75 carbon steel zinc coated
- Continuous duty cycle
- Mechanical Life: 200,000 cycles
- Integrated Deutsch 8-pin connector for coil and auxilary contacts
- Meets RoHS (2011/65/EU)
- CE certified
Applications:
- Typical applications include battery disconnect, EV charging, energy storage systems, photovoltaics, power control, circuit protection and much more.
Country of Origin: China
Circuitry: SPST Circuitry
Current Rating: 600A
Intermittent Rating: 2000A
Mounting Style: Flat-Mount
Number of Studs: 2 Stud
Temp (Degrees): -40°F (-40°C) to 185°F (85°C)
