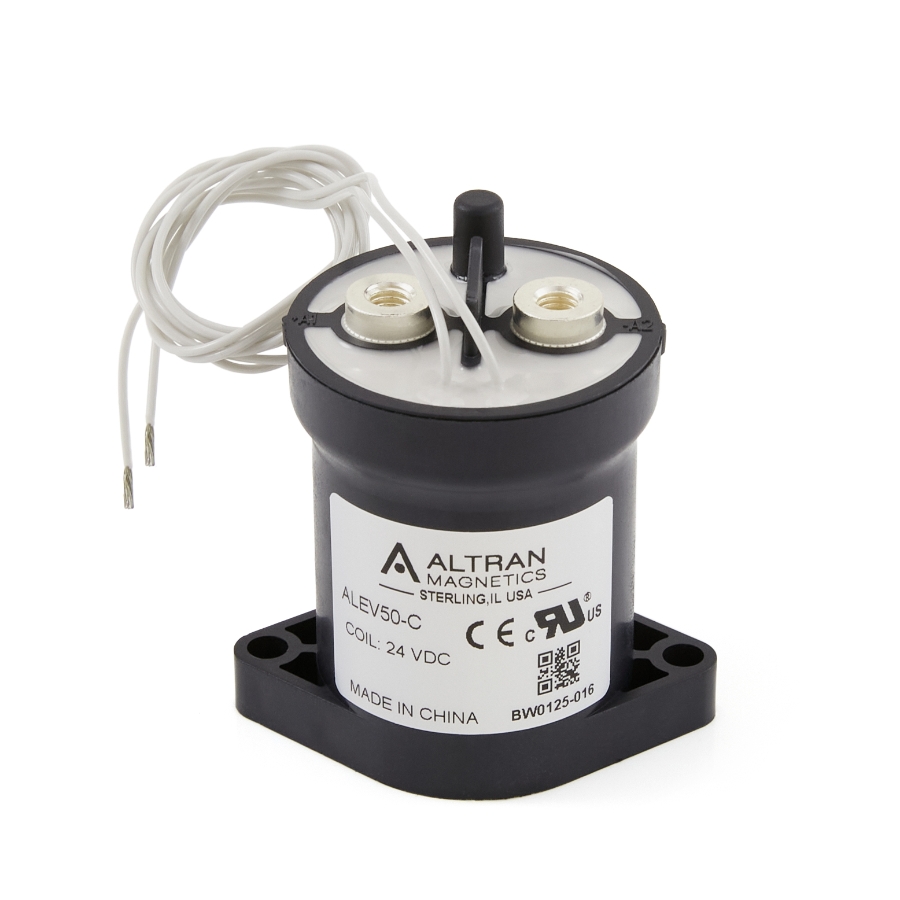

Altran Magnetics ALEV50-C 24V 50A DC Contactor With Auxilaury Contacts

The Altran Magnetics ALEV50 Series features a hermetically sealed inert gas filled arc chamber, creating a stable sealed environment suitable for high voltage switching. Safe for explosive environments. Mountable in any orientation without impacting performance. Wide range compatibility with an operating voltage range of 12 to 900VDC.

• Altran Magnetics ALEV50-C 24V 50A DC Contactor with Auxiliary Contacts
• Category: Contactors
• Manufacturer: Altran Magnetics
• Nominal Voltage: 24VDC
• Contacts: M5 x 0.8 threaded terminals
• Continuous duty cycle
• Mechanical Life: 200,000 cycles
• Meets RoHS (2011/65/EU)
• CE certified
• UL approved
• Coil Termination: 22 Ga. 15" flying leads

Applications:

• Typical applications include battery disconnect, EV charging, energy storage systems, photovoltaics, power control, circuit protection and much more.
