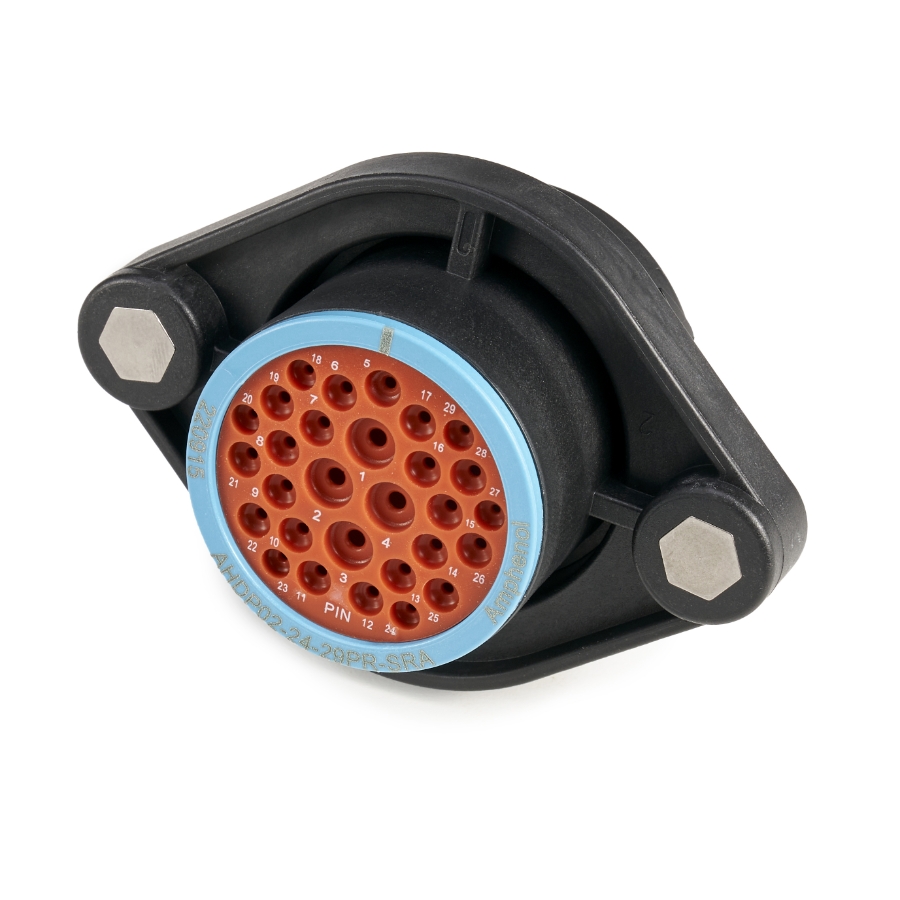

Amphenol Sine Systems AHDP02-24-29PR-SRA DuraMate AHDP Series, 29-Way Panel Mount Receptacle, Pin
Waytek #:39203
Mfr. #:AHDP02-24-29PR-SRA
$7.9100 / EA
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $7.9100 | $7.91 |
| 10 | $7.2100 | $72.10 |
| 50 | $6.8600 | $343.00 |
| 100 | $6.6600 | $666.00 |
| 200 | $6.5100 | $1,302.00 |
| 500 | $6.3600 | $3,180.00 |
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $7.9100 | $7.91 |
| 10 | $7.2100 | $72.10 |
Min. Order Qty: 1 |
Availability: 0 in Stock |
Standard Lead Time When No Stock: 140 days |
The DuraMate AHDP environmentally-sealed, multi-pin, heavy duty, plastic, circular connector series provides an economical quick-connect bayonet locking system manufactured to withstand the challenges and complexities of harsh environment off-road applications.
- Amphenol Sine Systems AHDP02-24-29PR-SRA DuraMate AHDP Series
- Category: Amphenol AHDP Connectors
- Manufacturer: Amphenol Sine Systems
- Component Type: Receptacle Housing
- Wire Gauge: 22-10 Ga.
- Number of Circuits: 29 Circuit
- Series: AHDP
- Number of Pins: 29
- Environmentally sealed rapid and secured mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud, and other contaminants and is vibration resistant
- Amphenol AHDP Series circular connectors contain an economical quick-connect bayonet locking system to help ensure proper mating
- Manufactured to withstand the challenges and complexities of harsh environments
- Provides a high density of signal and mixed power in a compact connector system
- Utilizes A Series standard contact system (stamped & formed or machined)
- Accepts (4) Size 12 Contacts, (19) Size 16 Contacts, (6) Size 20 Contacts
- Operating Temperature Range: -67°F to (-55°C) to 257°F (125°C)
- Current Rating: 7.5A, 13A, 25A
- Shell Size: Size 24
- Mating Connector: AHDP06-24-29P* (*Rear seal type and other mating connection modifications are available; see product data sheet for more information)
- Modifications: Sealed panel mount, reduced wire seal, smooth ring adapter
- Ratchet Hand Crimp Tool: 40104
- Contact Removal Tool: 632
Manufacturer : Amphenol Sine Systems
Country of Origin: China
Number of Circuits: 29 Circuit
Component Type: Receptacle Housing
Wire Gauge: 22-10 Gauge
