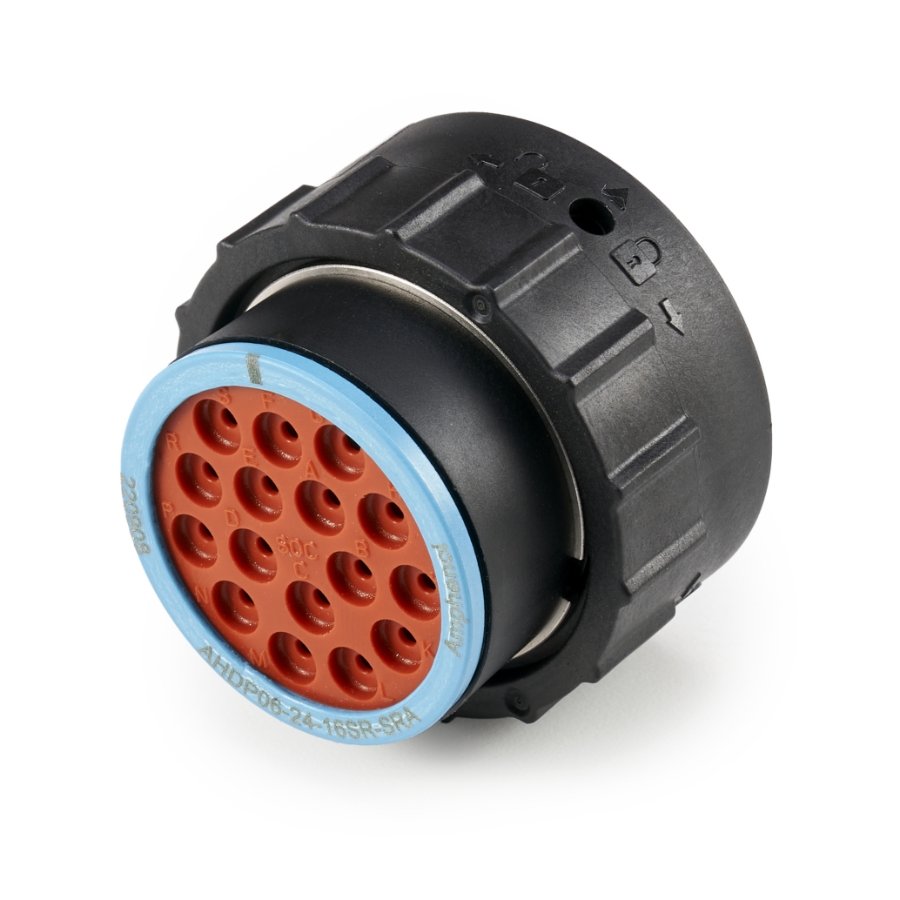

Amphenol Sine Systems AHDP06-24-16SR-SRA DuraMate AHDP Series, 16-Way Plug, Socket, Shell Size 24
Waytek #:39188
Mfr. #:AHDP06-24-16SR-SRA
$14.4400 / EA
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $14.4400 | $14.44 |
| 5 | $13.4700 | $67.35 |
| 10 | $12.0900 | $120.90 |
| 50 | $11.4000 | $570.00 |
| 100 | $10.4300 | $1,043.00 |
| 200 | $9.8100 | $1,962.00 |
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $14.4400 | $14.44 |
| 5 | $13.4700 | $67.35 |
Min. Order Qty: 1 |
Availability: 0 in Stock |
Standard Lead Time When No Stock: 140 days |
The DuraMate AHDP environmentally-sealed, multi-pin, heavy duty, plastic, circular connector series provides an economical quick-connect bayonet locking system manufactured to withstand the challenges and complexities of harsh environment off-road applications.
- Amphenol Sine Systems AHDP06-24-16SR-SRA DuraMate AHDP Series
- Category: Amphenol AHDP Connectors
- Manufacturer: Amphenol Sine Systems
- Component Type: Plug Housing
- Wire Gauge: 14-10 Ga.
- Number of Circuits: 16 Circuit
- Deutsch Part # HDP26-24-16SE
- Series: AHDP
- Number of Pins: 16
- Environmentally sealed rapid and secured mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud, and other contaminants and is vibration resistant
- Amphenol AHDP Series circular connectors contain an economical quick-connect bayonet locking system to help ensure proper mating
- Manufactured to withstand the challenges and complexities of harsh environments
- Provides a high density of signal and mixed power in a compact connector system
- Utilizes A Series standard contact system (stamped & formed or machined)
- Accepts Size 12 Contacts
- Operating Temperature Range: -67°F to (-55°C) to 257°F (125°C)
- Current Rating: 25A
- Shell Size: Size 24
- Mating Connector: AHDP06-24-16P* | Waytek # 39189 (*Rear seal type and other mating connection modifications are available; see product data sheet for more information)
- Modifications: Reduced wire seal
- Ratchet Hand Crimp Tool: 40103
- Contact Removal Tool: 631
Manufacturer : Amphenol Sine Systems
Number of Circuits: 16 Circuit
Component Type: Plug Housing
Wire Gauge: 14-10 Gauge
