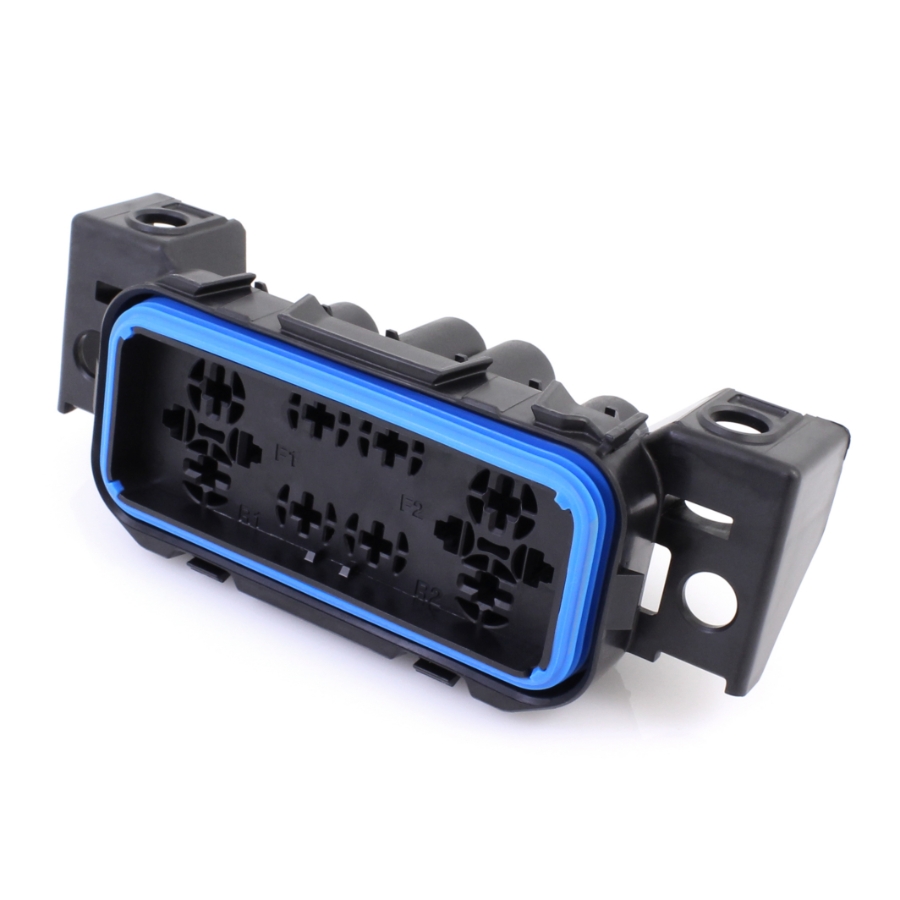

GEP Power Products PDM-R4C01, PDM-R Series, Sealed MAXI Fuse and Relay Housing, 58VDC

The PDM-R Series PDM is designed to meet the needs of demanding environments, with a focus on great sealing performance, high component density, versatile mounting options, and various housings to meet your application needs

• GEP Power Products PDM-R4C01, PDM-R Series, Sealed MAXI Fuse and Relay Housing, 58VDC
• Category: Power Distribution Modules
• Manufacturer: GEP Power Products
• The PDM-R Series PDM is designed to withstand harsh environments and provide superior sealing performance.
• Designed to use multiple sweeping seals to give your application the greatest protection from ingression while making it easy to engage and disengage.
• PDM's interlock to allow for component add-ons and system growth
• Can accept 2 MAXI Relays & 2 MAXI Fuses
• Optional Black Cover: 30424
• Secondary TPA: (Optional 6 Required) 30427
• Mounting Clip: (Optional 2 Required) 30411
• Accepts up to a total of 2 MAXI Type Relays and 2 Maxi Fuses
• Terminals required:
  • 4 x Female Ducon 9.5 Terminals and Ducon cable seals
  • 4 x Female Lear MAK8 Terminals
  • 4 x Female Aptiv 630 Terminals and cable seals
