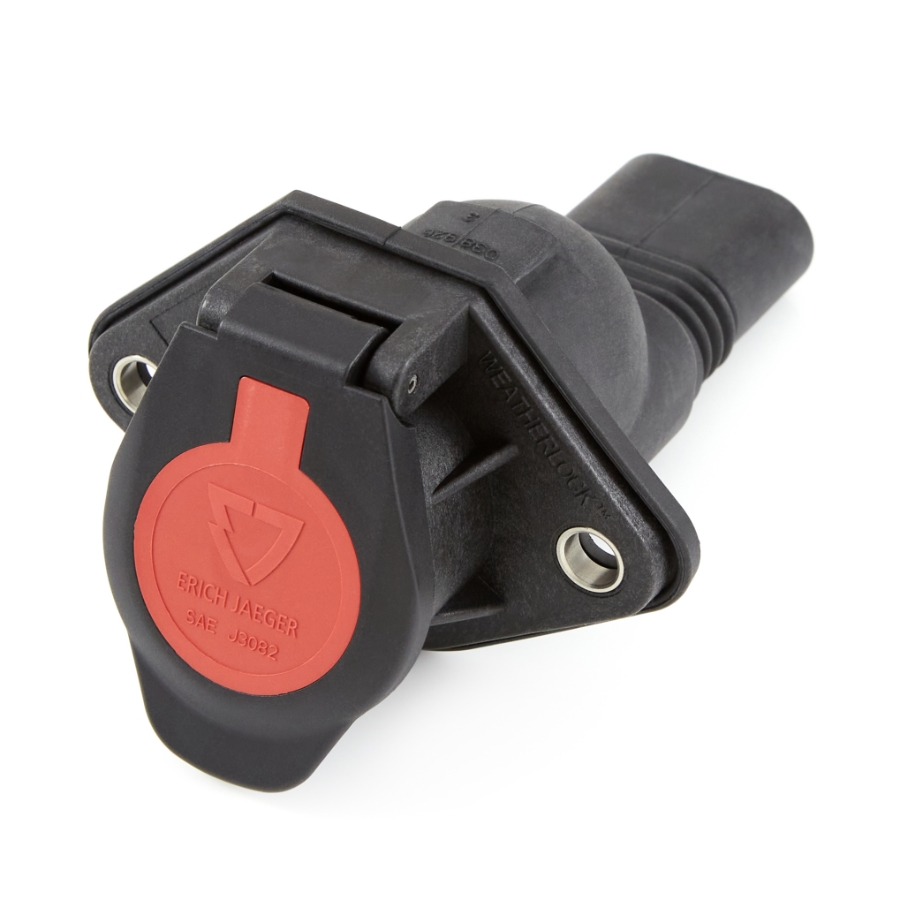

Erich Jaeger 153148, 2-Way Trailer Connector Socket with Cable (SAE J3082

The Erich Jaeger 153148 is a rugged 2‑pole socket built to SAE J3082 liftgate and battery charging standards. Featuring nickel-plated screw contacts, a straight 180° sealed grommet, and a heavy-duty 4 AWG cable, it delivers reliable 12 V power in commercial-vehicle environments. Built in the WeatherLock™ family for maximum durability.

• Erich Jaeger 153148 2-Way Trailer Connector Socket with Cable (SAE J3082
• Category: Trailer Connectors
• Manufacturer: Erich Jaeger
• Number of Contacts: 2
• Built for demanding commercial use: Meets SAE J3082 specs with 4 AWG wiring—perfect for liftgate and battery charging setups under heavy load.
• Clean harness routing: Straight 180° boot enables emergence into corrugated conduit or tight harness runs without bending.
• High-performance waterproof design: IP X9-rated housing and boot deliver peak protection against high-pressure washdowns and moisture exposure
• Ideal for agricultural & utility vehicle applications
• Features:
  • SAE J3082 liftgate/battery charging socket, 12 V
  • 4 Ga. pre-wired cable with straight 180° sealed boot
  • Robust nickel-plated terminals with stainless strain relief
• Applications:
  • Liftgate power interface on commercial vehicles
  • Battery charging port for agricultural or utility systems
  • OEM and aftermarket harness assemblies requiring robust power connectors
• Included in box:
  • 2‑pole 12 V socket with built-in 4 AWG wiring and sealed outlet
