11 Ways to Protect Your Boat’s Electrical System

No one wants to be stuck on a boat with a short circuit, a fire, or a complete loss of electrical power. Here are some tips for maintaining safe and reliable marine electrical systems.

1. Proper Grounding

Connect all metal parts of the boat to a common ground, ensuring that in case of a fault, the current can flow safely to ground without creating hazards.

When grounding electrical wiring, connectorized busbars provide an added level of protection from water and contaminants compared to traditional open-style busbars.

Right: A 12-Position Sealed Busbar from Egis Mobile Electric.

2. Use of Marine-Grade Components

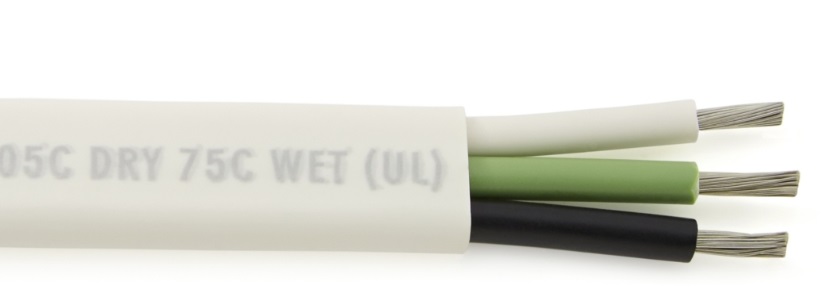

Use tinned copper wire for optimal resistance to corrosion and marine environments. Multi-conductor marine cable from Waytek, for example, meets ABYC, UL 1426, and Coast Guard specifications and comes in a variety of jacket colors for identification purposes in marine applications.

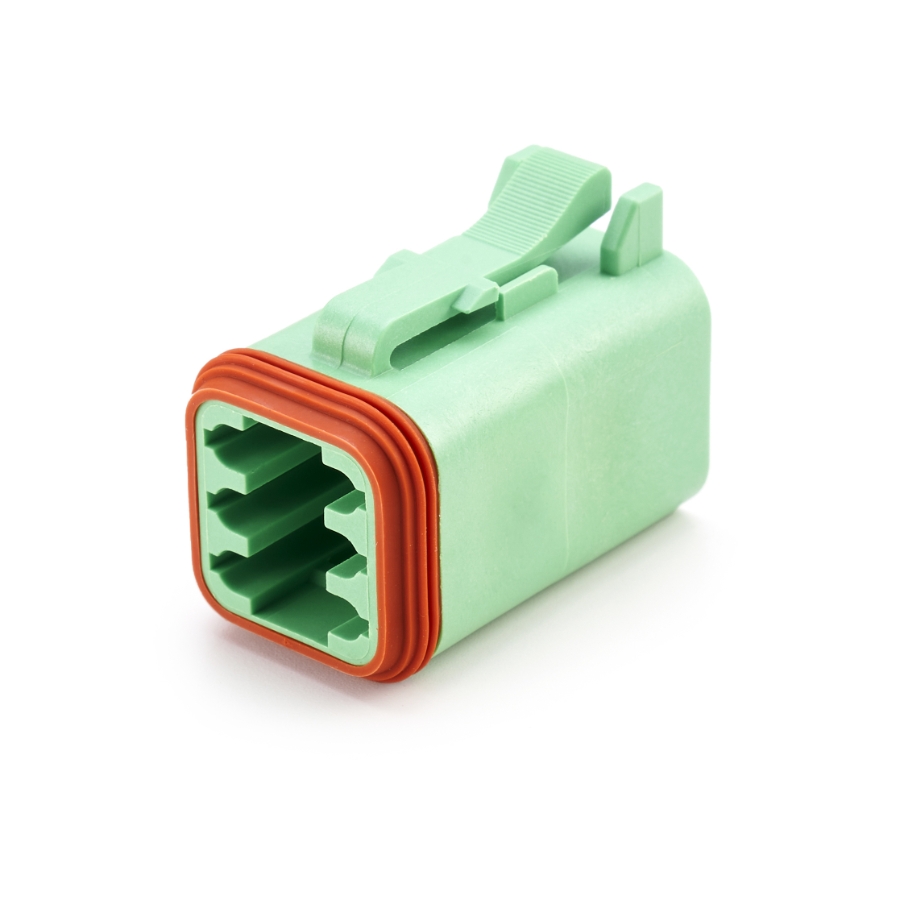

Ensure your electrical connectors are watertight and corrosion-resistant, reducing the chances of loose connections and shorts. AT Series connectors from Amphenol Sine Systems (example at right) meet exacting IP68 and IP69K standards for water reistance and include the added benefit of colored housings for marine identification purposes.

Use appropriate fuses and circuit breakers to protect circuits from overloads and short circuits. Marine-worthy examples include MRBF fuses from Eaton, which are SAE and J1117 rated for ignition protection, and Series 87 circuit breakers from Mechanical Products, which meet ABYC E-11 standards.

3. Regular Inspections and Maintenance

Regularly check wires for corrosion, wear, or fraying. Routinely test ground-fault circuit interrupters (GFCIs) and other safety devices to ensure they work correctly. Keep batteries in good condition and ensure that their terminals are clean and tightly connected.

4. Proper Installation and Sizing of Equipment

Ensure wires have the correct wire gauge for the current they will carry to avoid overheating. Make sure the wiring is properly secured and routed to avoid damage from vibration, sharp edges, or water intrusion.

Keep electrical components dry and protected from water, using waterproof enclosures where necessary or by applying protective products such as adhesive-lined heat shrink from DGG-Canusa around wires and connections.

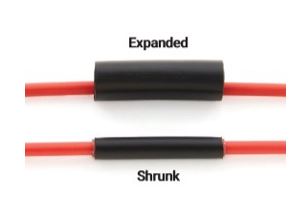

Right: Example of heat shrink (black) before and after application to a wire connection (red).

5. Ground-Fault Protection (GFCI)

Install GFCI outlets in areas near water (galleys, engine rooms) to prevent electric shock in case of a ground fault.

6. Isolated Battery Systems

Use separate battery banks for critical systems like navigation and communications, ensuring that an issue with one system doesn’t disable the boat's ability to communicate or navigate.

When using multiple batteries, be sure to install an automatic charging relay, low voltage disconnect, or battery isolator to prevent power drain when systems aren’t in use.

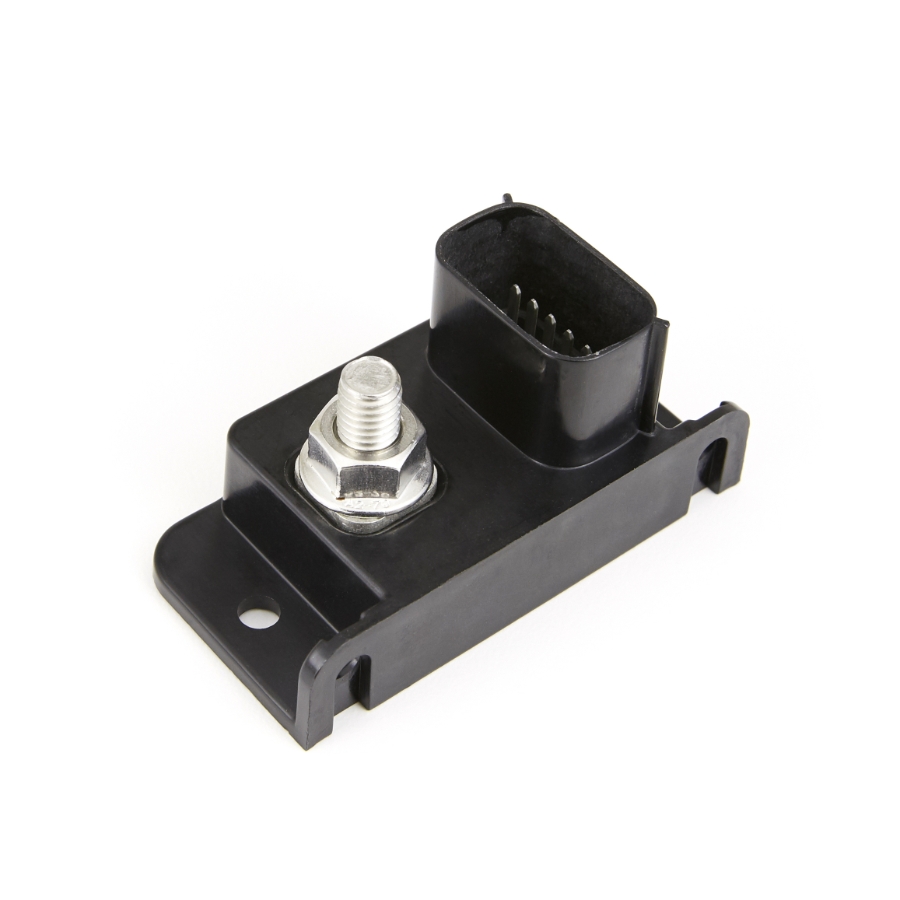

Right: An XD Series low voltage disconnect from Egis Mobile Electric, a dependable option for managing batteries in marine applications.

7. Lightning Protection

Install a lightning protection system, such as a mast lightning rod with proper conductors to ground the energy safely into the water.

8. Inverter and Charger Safety

Ensure inverters are correctly installed with appropriate circuit protection to handle AC/DC conversion safely. Use smart battery chargers to prevent overcharging or undercharging batteries.

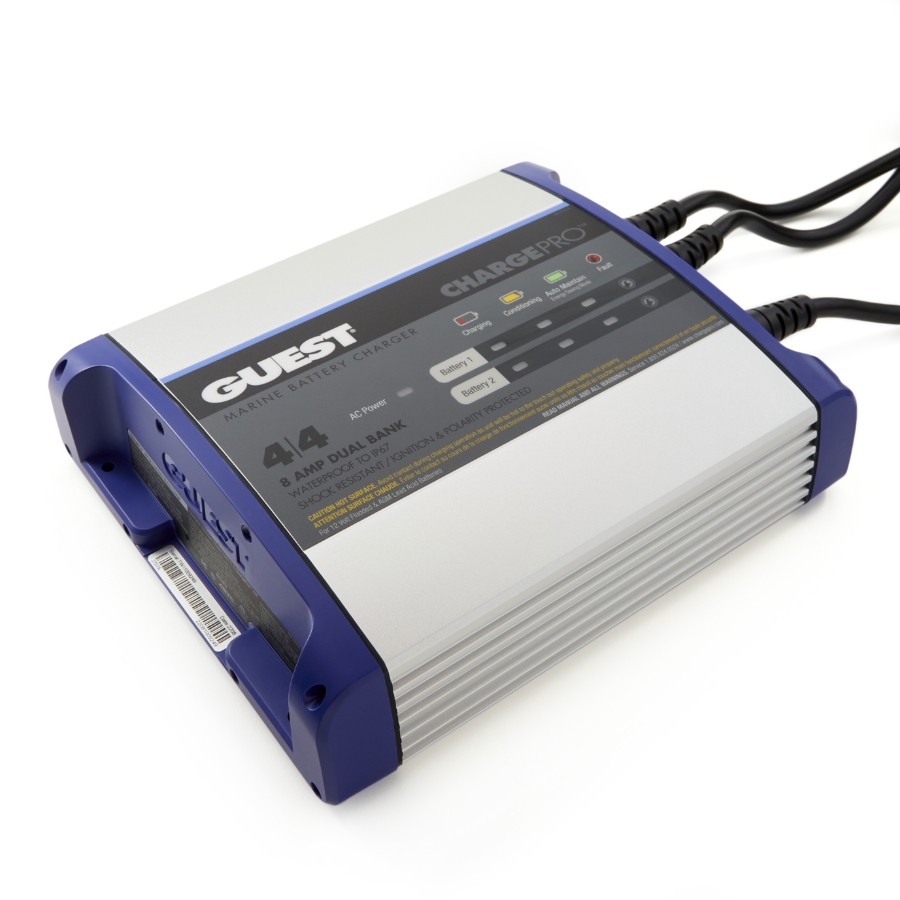

Right: A Marinco Guest on-board battery charger designed to charge 12-volt marine batteries.

9. Isolation Transformers and Galvanic Isolators

Isolation transformers protect from dangerous shore power surges by isolating the boat’s electrical system from the shore power. Galvanic isolators reduce the risk of corrosion caused by stray currents from shore power connections.

10. Compliance with Marine Standards

Follow marine electrical standards, such as those set by the American Boat and Yacht Council (ABYC) or the International Maritime Organization (IMO), to ensure installations meet safety guidelines. When selecting electrical components, it's important to check that they are ignition protected and have adequate Ingress Protection (IP) ratings for marine use.

11. Emergency Shut-Off Systems

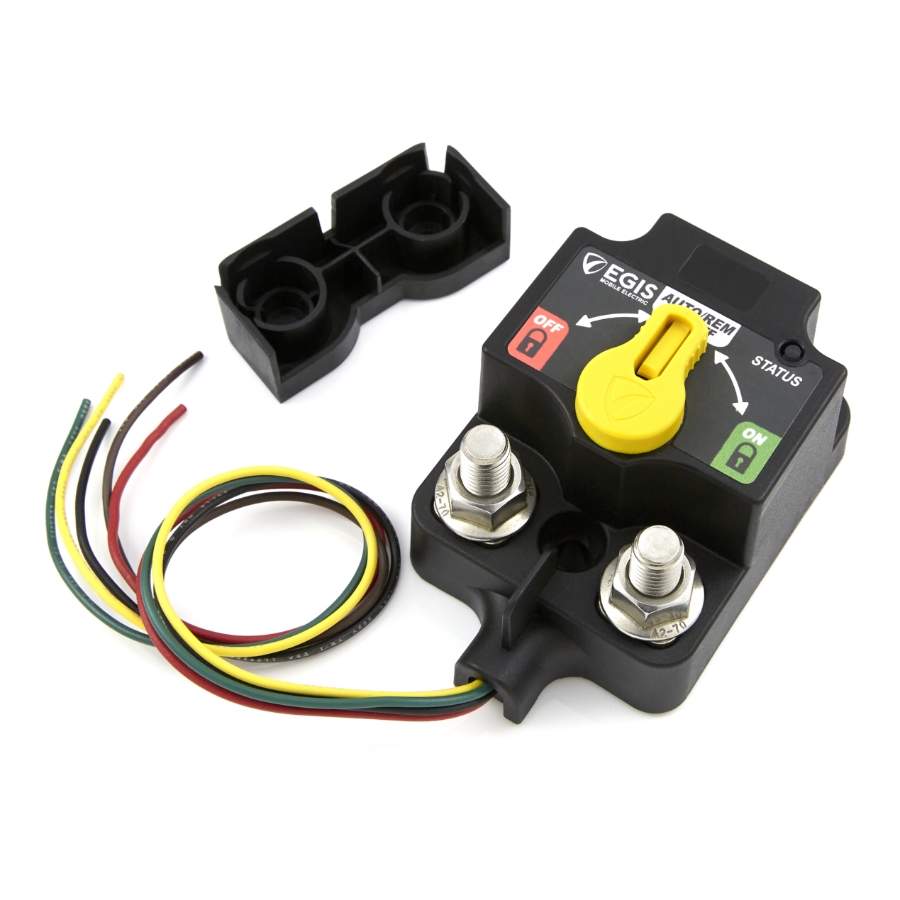

Install emergency shut-off switches for critical systems (like fuel or power) that can quickly disconnect in case of malfunction or fire. If your boat doesn’t come equipped with a battery disconnect switch, consider installing one. Options range from lever-operated disconnect switches to heavier-duty switches often used on larger vessels.

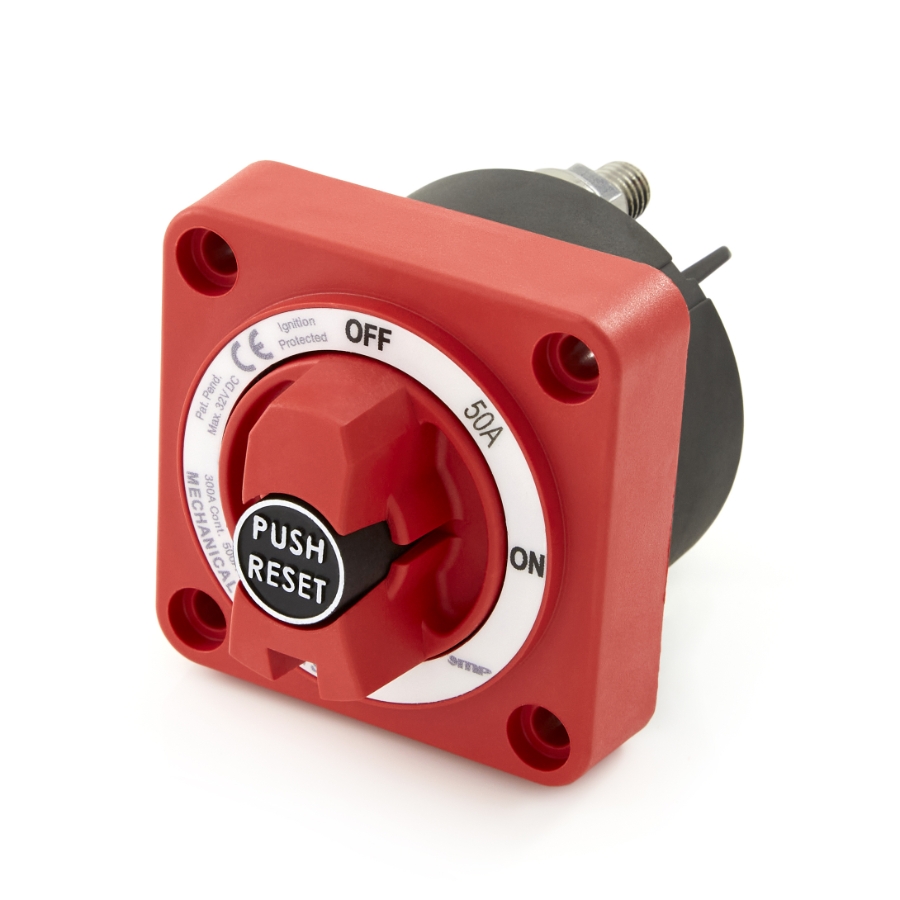

Mechanical Products’ innovative Series 67 disconnect with an integrated reset circuit breaker (shown at right) can serve as both an emergency shut-off and a circuit breaker, eliminating the need to install two separate components.

Conclusion

By following these best practices, you can significantly improve the safety and reliability of your boat’s electrical system.
