Home  >  Terminals  >  Ring Terminals  > Molex 19057-0011 Ring Terminal, 22-18 Ga.,

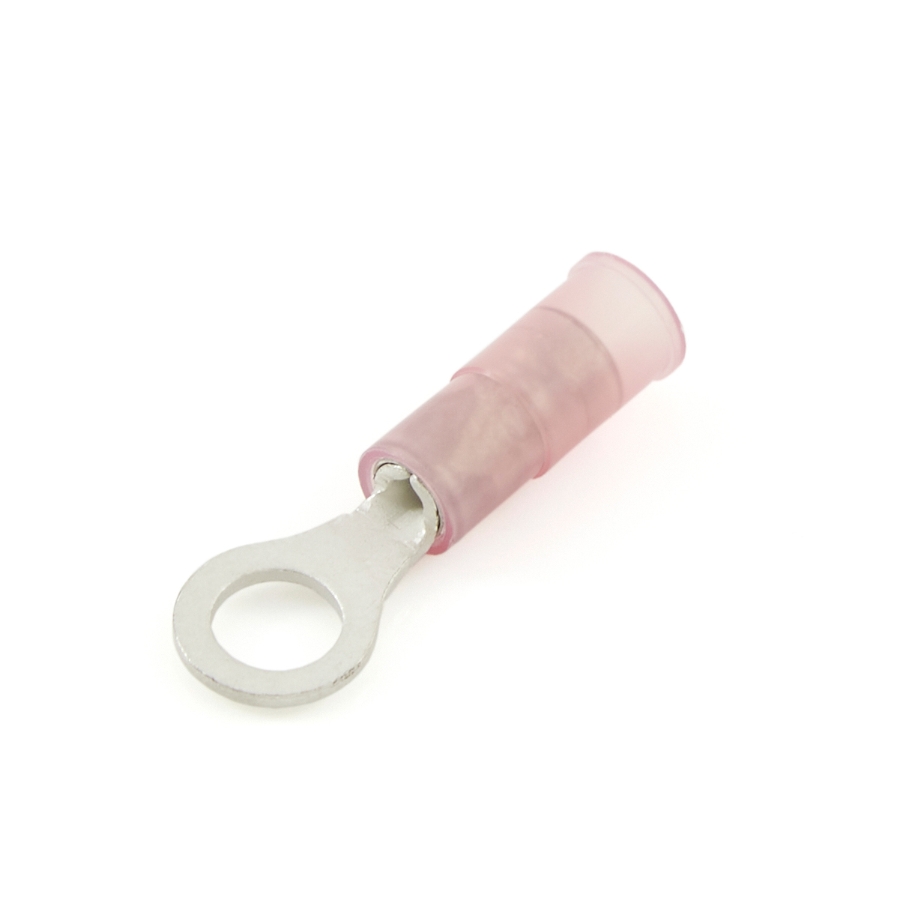

Molex 19057-0011 Ring Terminal, 22-18 Ga., #10 Stud, Nylon Insulated w/ Extra Sleeve

Item #: 30703
Manufacturer Item: 19057-0011
Manufacturer: Molex
Min. Order Qty: 100
Available: 0
Quantity EA Price Ext. Price
100 0.1690 16.90
200 0.1495 29.90
500 0.1309 65.45
1000 0.1154 115.40
5000 0.1078 539.00
RoHS Compliant
Made in USA
Nylon insulated terminals start as a standard butted seam terminal with a brass sleeve over the barrel and the nylon insulation is molded over this brass barrel. These terminals should be crimped twice, once on the copper conductor in the wire and once on the insulation part of the wire. This second crimp helps provide a stronger connection, can act as a strain relief and is recommended when the terminal is subject to vibration.
    • Molex 19057-0011 Nylon Insulated Ring Terminals
    • Category: Ring Terminals
    • Manufacturer: Molex
    • Color: Red
    • Insulation: Nylon Insulated w/ Extra Sleeve
    • Stud Size: #10
    • Wire Gauge 22-18 Ga.
    • Material: Tin plated copper
    • Allows for easy wire insertion
    • Butted seam barrel for extra wire grip
    • Crimp terminals twice; once on copper conductor, once on insulation
    • Second crimp helps provide stronger connections and acts as strain relief
    WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

    Ring Terminals

    Insulation Color
    Insulation Material
    Nylon w/Extra Sleeve Insulated
    Wire Gauge
    22-18 Gauge
    Conductor Material
    Tin Plated Brass
    Stud Size
    #10 Stud
