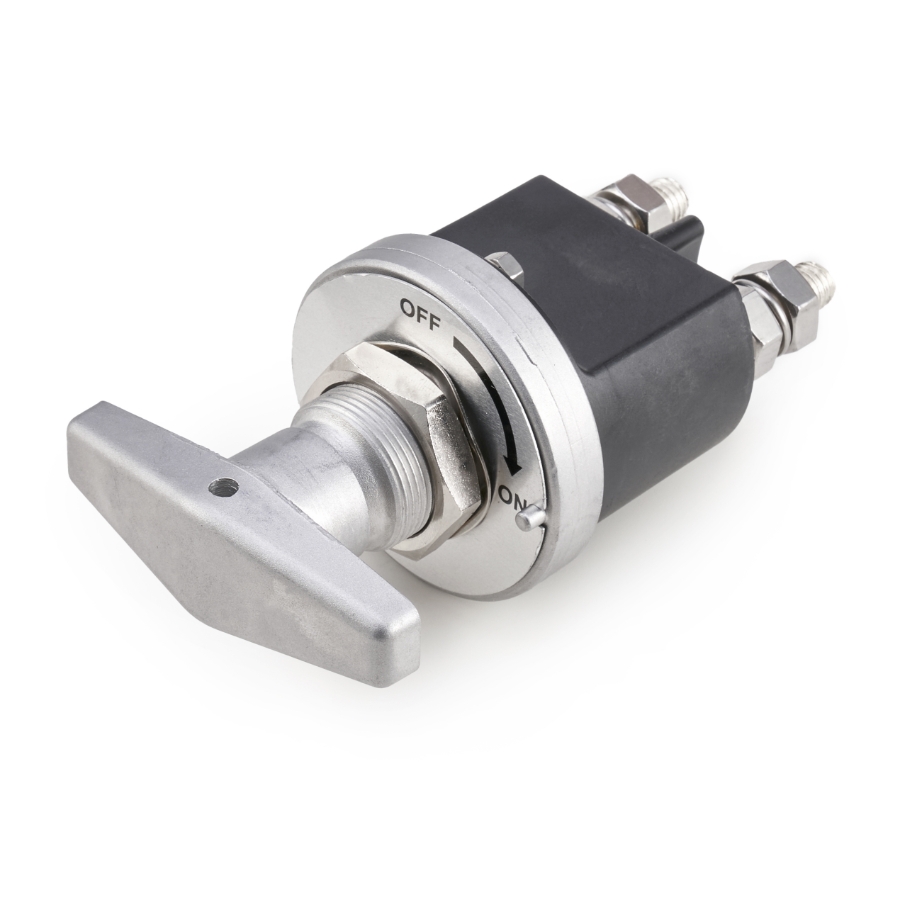

OptiFuse HDB6-1A-3-T Battery Disconnect Switch, 500A, 12VDC
Item #: 44071
Manufacturer Item: HDB6-1A-3-T
Manufacturer:
OptiFuse
Min. Order Qty: 1
Available: 70
76.5700
EACH
Quantity:
| Quantity | EA Price | Ext. Price |
| 1 | 76.5700 | 76.57 |
| 5 | 71.7000 | 358.50 |
| 10 | 67.1500 | 671.50 |
| 25 | 62.7400 | 1568.50 |
| 50 | 60.3300 | 3016.50 |
Robust high-amp battery disconnect switch durably designed to withstand harsh environments and adverse conditions; metal body construction with environment protection ranging from splash proof sealing to IP66, with easy-grip T-handle.
- OptiFuse HDB6-1A-3-T Battery Disconnect Switch
- Category: Battery Disconnects
- Manufacturer: OptiFuse
- Switch Type: Mechanical
- Circuitry: SPST
- Continuous Rating: 500A 12VDC, 300A 24VDC
- Intermittent Rating: 2000A for 5 seconds
- Switch Function: Off-On
- Water-resistant design, sealed with gasket and O-Rings
- Completed Sealed to: IP66
- Contact Type: (2) M20 studs
- Operating Temperature: -40°F (-40°C) to 185°F (85°C)
- Silver-plated copper contacts
- Lock-out handle and bracket allows the switch to be locked in the off position to comply with OSHA lock-out/tag-out regulation
- Fixed spring-loaded T-handle
- Replacement to existing competitive disconnect switches
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Disconnect Switches
Current Rating
500A
Ingress Protection
IP66
Contact Action
Off-On
Type/Series
Electromechanical Switches
Voltage Rating
12-24VDC
Circuitry
SPST Circuitry
