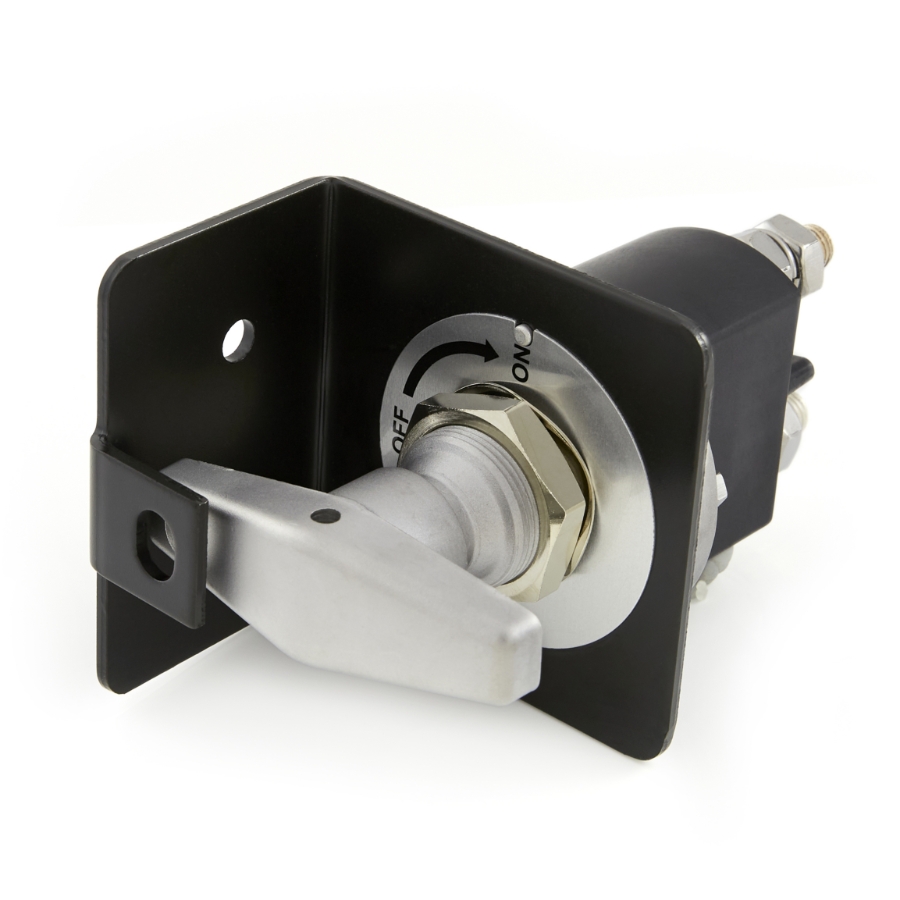

OptiFuse HDB6-1A-3-T3 Battery Disconnect Switch w/ Lock Out Mounting Bracket, 500A, 12VDC
Waytek #:44072
Mfr. #:HDB6-1A-3-T3
$89.5900 / EA
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $89.5900 | $89.59 |
| 5 | $83.7600 | $418.80 |
| 10 | $78.3400 | $783.40 |
| 25 | $74.5900 | $1,864.75 |
| 50 | $72.0900 | $3,604.50 |
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $89.5900 | $89.59 |
| 5 | $83.7600 | $418.80 |
Min. Order Qty: 1 |
Availability: 0 in Stock |
Standard Lead Time When No Stock: 160 days |
Documents
Robust high-amp battery disconnect switch durably designed to withstand harsh environments and adverse conditions; metal body construction with environment protection ranging from splash proof sealing to IP66, with easy-grip T-handle.
- OptiFuse HDB6-1A-3-T3 Battery Disconnect Switch with Lock Out Mounting Bracket
- Category: Battery Disconnects
- Manufacturer: OptiFuse
- Switch Type: Mechanical
- Circuitry: SPST
- Continuous Rating: 500A 12VDC, 300A 24VDC
- Intermittent Rating: 2000A for 5 seconds
- Switch Function: Off-On
- Water-resistant design, sealed with gasket and O-Rings
- Completed Sealed to: IP66
- Contact Type: (2) M20 studs
- Operating Temperature: -40°F (-40°C) to 185°F (85°C)
- Silver-plated copper contacts
- Lock-out handle and bracket allows the switch to be locked in the off position to comply with OSHA lock-out/tag-out regulation
- Fixed spring-loaded T-handle
- Replacement to existing competitive disconnect switches
Manufacturer : OptiFuse
Contact Action: Off-On
Current Rating: 500A
Circuitry: SPST Circuitry
Ingress Protection: IP66
Type Series: Electromechanical Switches
Voltage Rating: 12-24VDC
Special Features: Lockout
