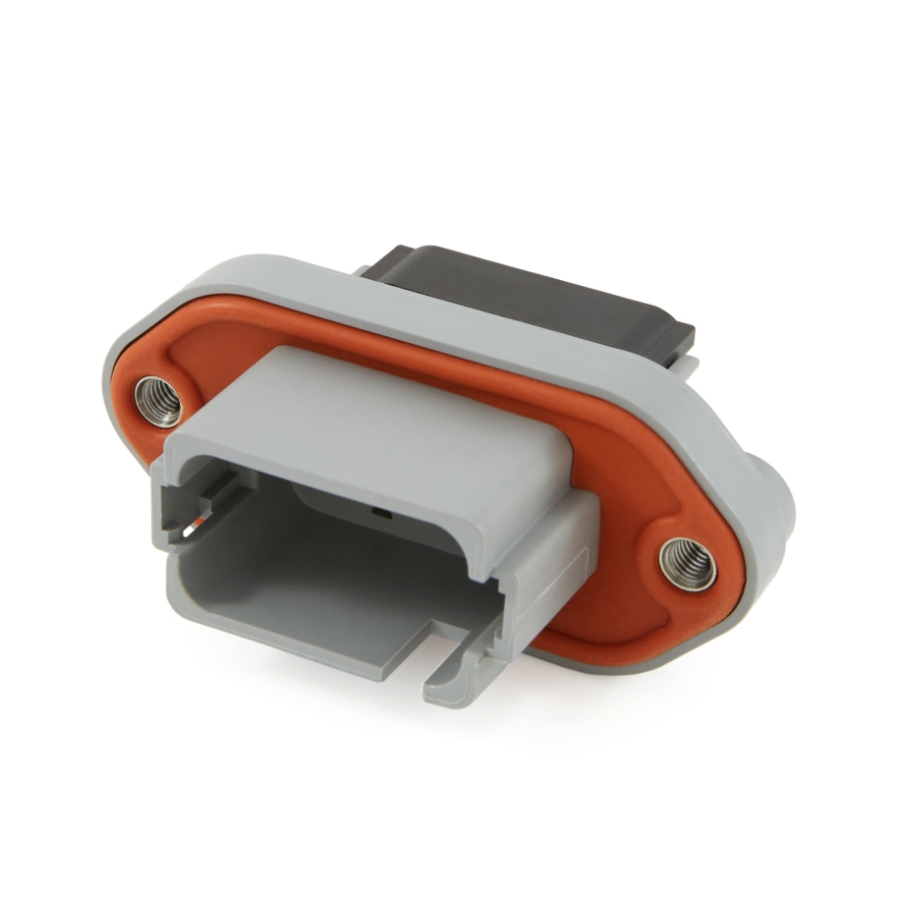

Amphenol Sine Systems AT16-18PA-PM11 18-Way Connector Receptacle, Key-A, Panel Mount
Waytek #:39804
Mfr. #:AT16-18PA-PM11
$9.7700 / EA
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $9.7700 | $9.77 |
| 10 | $8.8100 | $88.10 |
| 50 | $8.0700 | $403.50 |
| 100 | $7.8200 | $782.00 |
| 200 | $7.2400 | $1,448.00 |
| 500 | $6.7000 | $3,350.00 |
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $9.7700 | $9.77 |
| 10 | $8.8100 | $88.10 |
Min. Order Qty: 1 |
Availability: 0 in Stock |
Standard Lead Time When No Stock: 140 days |
Documents
AT Series™ connectors are a high-performance, cost effective solution for use in a variety of interconnect applications: Heavy-duty, transportation, marine, diagnostic, military, alternative energy, and agricultural. They contain superior environmental seals and seal retention capabilities.
- Amphenol Sine Systems AT16-18PA-PM11 Connector Receptacle
- Category: Amphenol AT Series™ Connectors
- Manufacturer: Amphenol Sine Systems
- Series: AT
- Deutsch DT compatible connector line
- High-performance, cost-effective Deutsch DT replacement
- Durable thermoplastic housings offer excellent UV resistance, dielectric/mechanical properties and RoHS compliance
- Front and rear silicone seal, multi-sealing perimeter protects against environmental ingress
- Nickel-plated contacts ensure an electrically reliable connection
- Integral latching system ensures definitive electrical and mechanical connection
- Pin terminals and socket terminals can be interchangeable with Deutsch DT terminals
Manufacturer : Amphenol Sine Systems
Country of Origin: China
Component Type: Receptacle Housing
Number of Circuits: 18 Circuit
Wire Gauge: 20-14 Gauge
